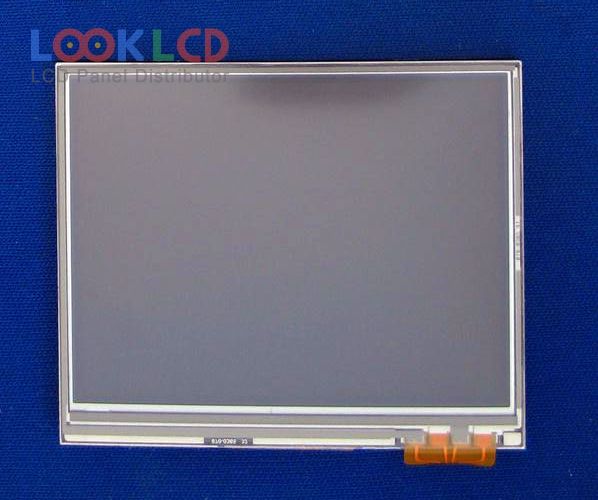

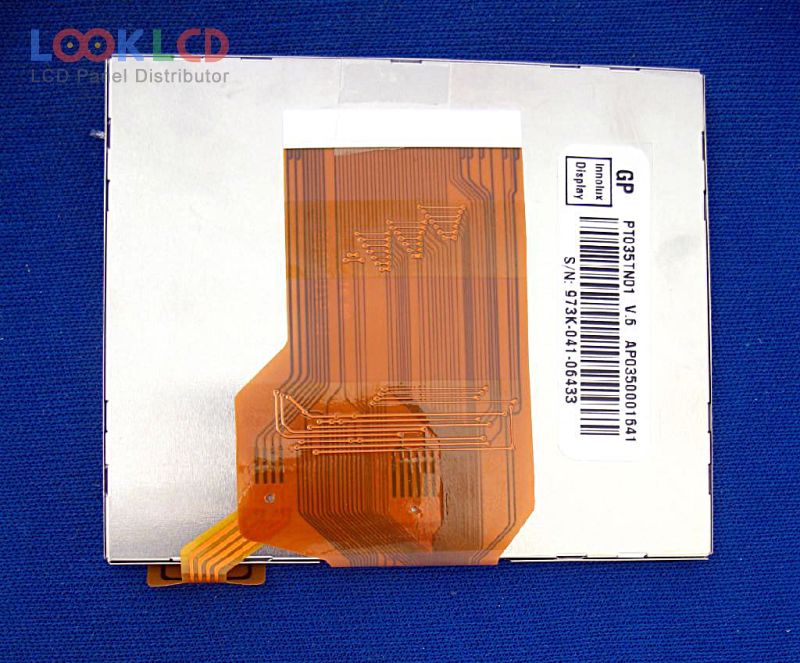

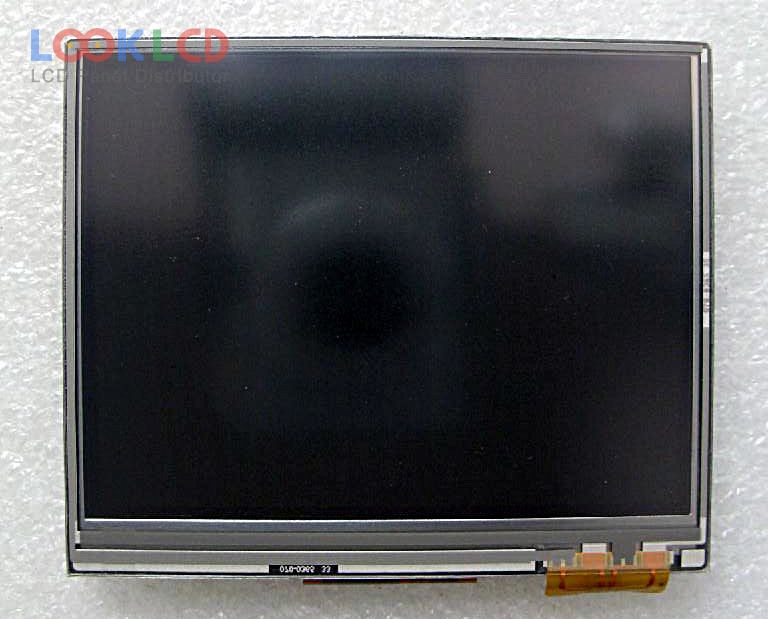

| Varenummer | PT035TN01 V.6 |
| Mærke | Innolux |
| Størrelse | 3.5 |
| Ansøgning | PND |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | INNOLUX |
| panel model | PT035TN01 V.6 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 70.08×52.56 mm |
| omrids | 78.2×65×4.8 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 300 : 1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| indgangsspænding | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | PND |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LH350WV2-SH02 | LG Display | 3.5 | 480×800 |
| PD035VX8 | E Ink | 3.5 | 480×640 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.3 | Innolux | 3.5 | 320×240 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
| 35QVW1T | SII | 3.5 | 320×240 |
| A043FW02 V8 | AUO | 4.3 | 480×272 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
