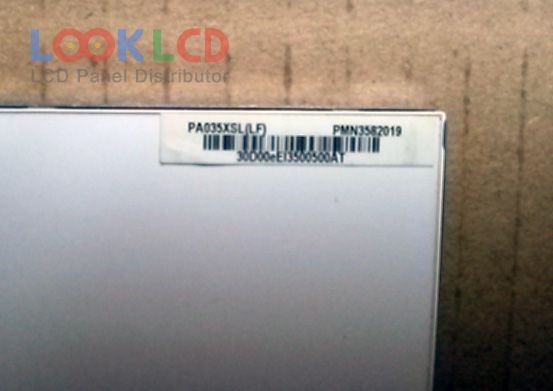

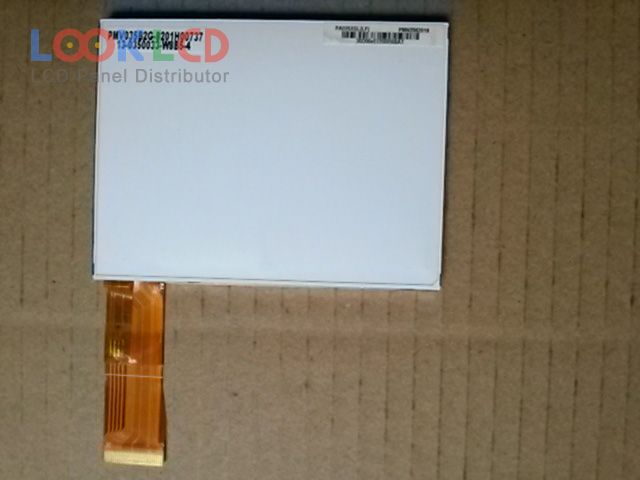

| Varenummer | PA035XSL |
| Mærke | E Ink |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×234 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 350:1 |
| Farver | Full color |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | PVI |
| panel model | PA035XSL |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 71.6×52.65 mm |
| omrids | 83.5×63.1×3.9 mm |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | Full color |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 30 pins |
| indgangsspænding | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| Ansøgning | DSC |
