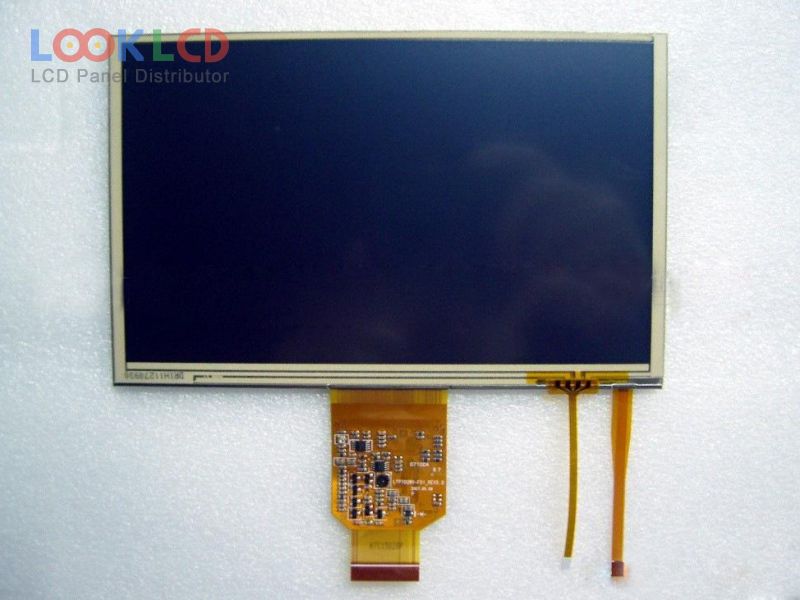

| Varenummer | LMS700KF01-001 |
| Mærke | Samsung |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 280 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LMS700KF01-001 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800×480(RGB) , WVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 152.4×91.44 mm |
| omrids | 163.2×104×4.7 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 280 cd/m² (Typ.) |
| kontrastforhold | 300 : 1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 22.7 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | MP4 |
