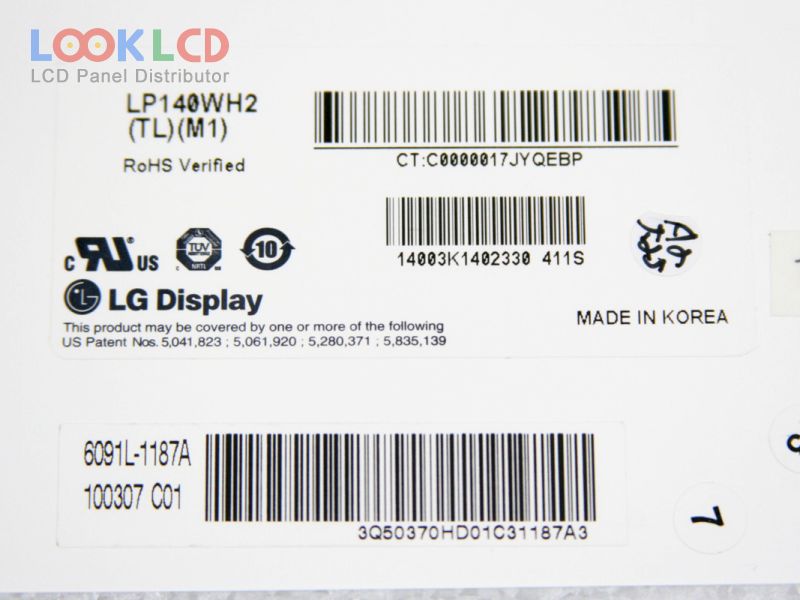

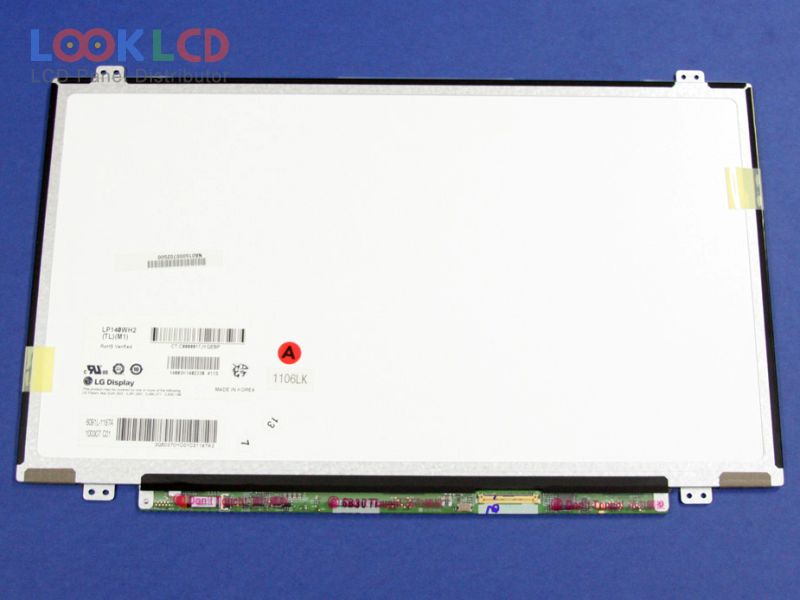

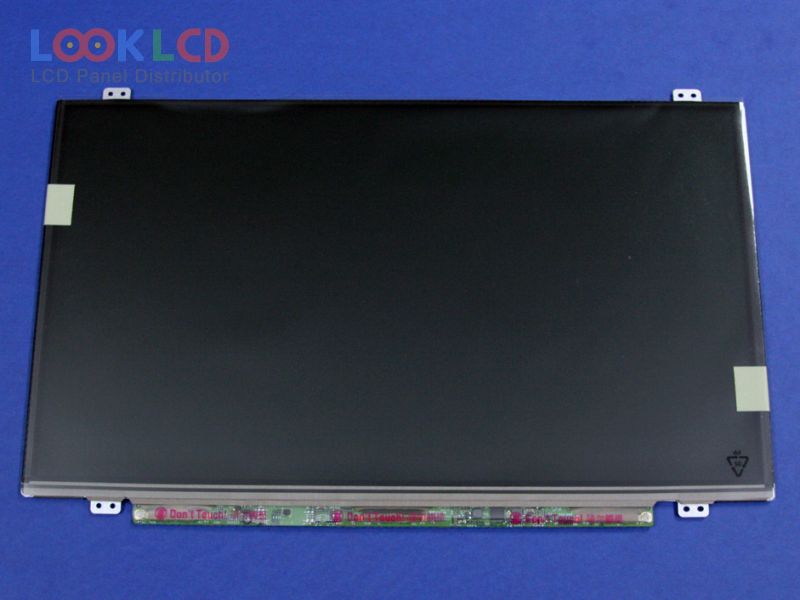

| Varenummer | LP140WH2-TLM1 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP140WH2-TLM1 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 322.3×204.6×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| B101XTN01.1 | AUO | 10.1 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| HT14P12-101 | HYDIS | 14.1 | 1400×1050 |
| LP133WP1-TJA7 | LG Display | 13.3 | 1440×900 |
| LTD133EWCF | TOSHIBA | 13.3 | 1280×800 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
