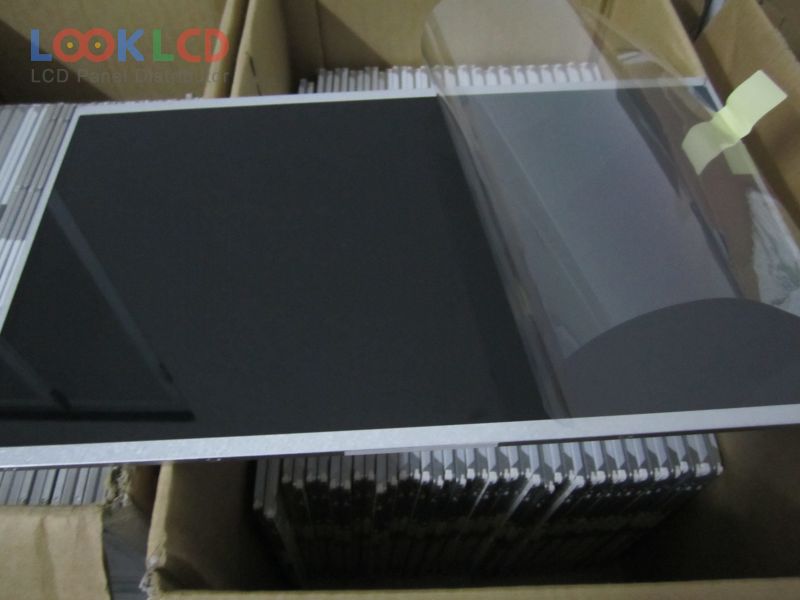

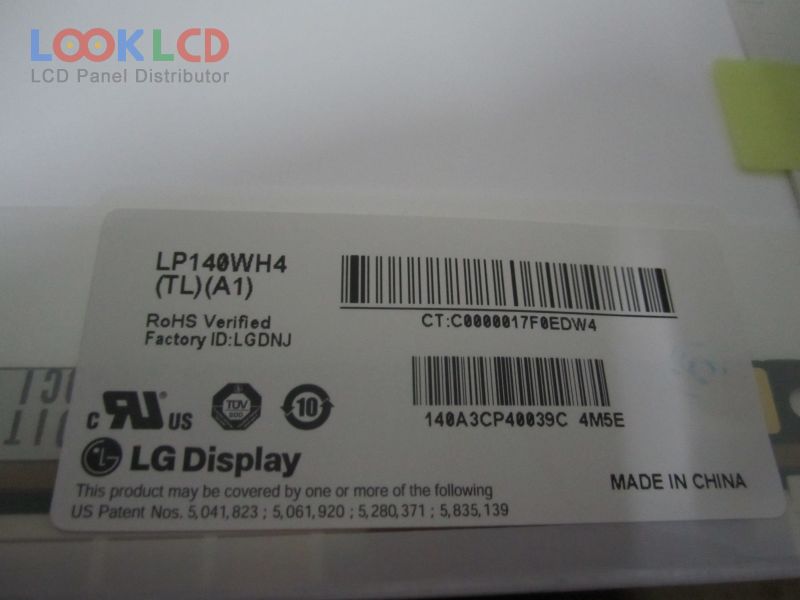

| Varenummer | LP140WH4-TLA1 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP140WH4-TLA1 30 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 323.5×192×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

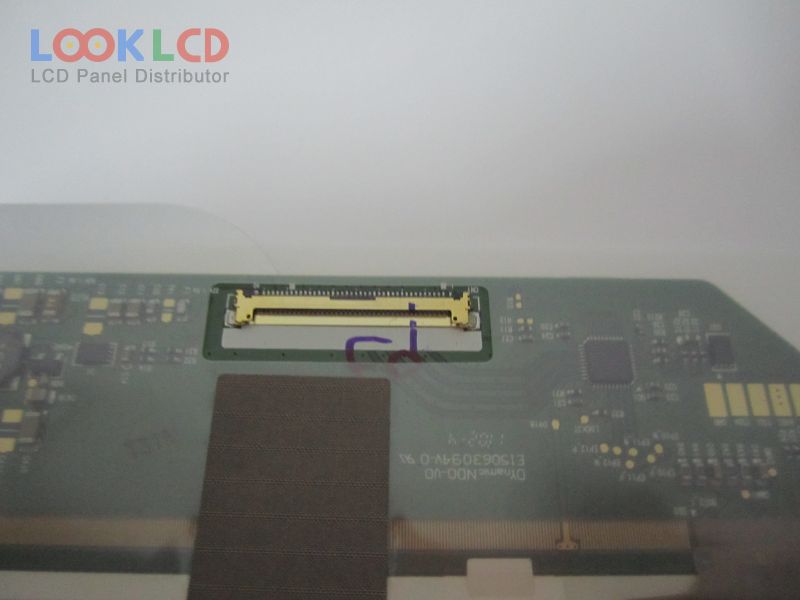

| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP140WF1-SPB1 | LG Display | 14.0 | 1920×1080 |
| LP140WF1-SPU1 | LG Display | 14.0 | 1920×1080 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLA2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TPH1 | LG Display | 14.0 | 1366×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| LP140WH1-TLA2 | LG Display | 14.0 | 1366×768 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| LTD133EWCF | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT02-B01 | Samsung | 14.0 | 1366×768 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| N134B6-L04 | Innolux | 13.4 | 1366×768 |
