| Varenummer | NV133FHM-N52 |
| Mærke | BOE |
| Størrelse | 13.3 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | BOE |
| panel model | NV133FHM-N52 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.3 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 293.76×165.24 mm |
| omrids | 300.26×188.25×2.4 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193172% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S4PWLEDEmbedded (LED Driver) |

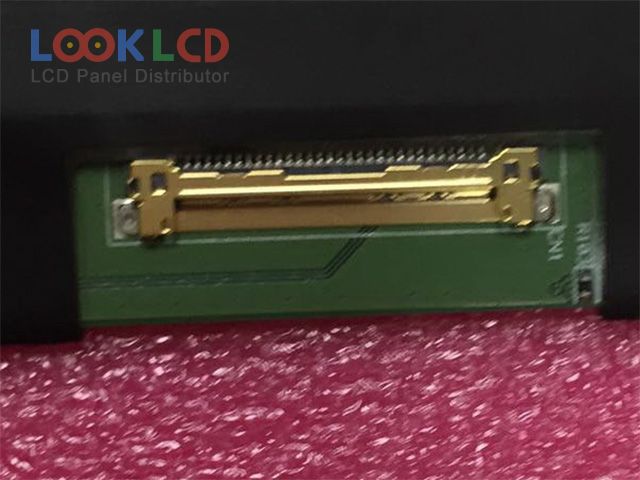

| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
