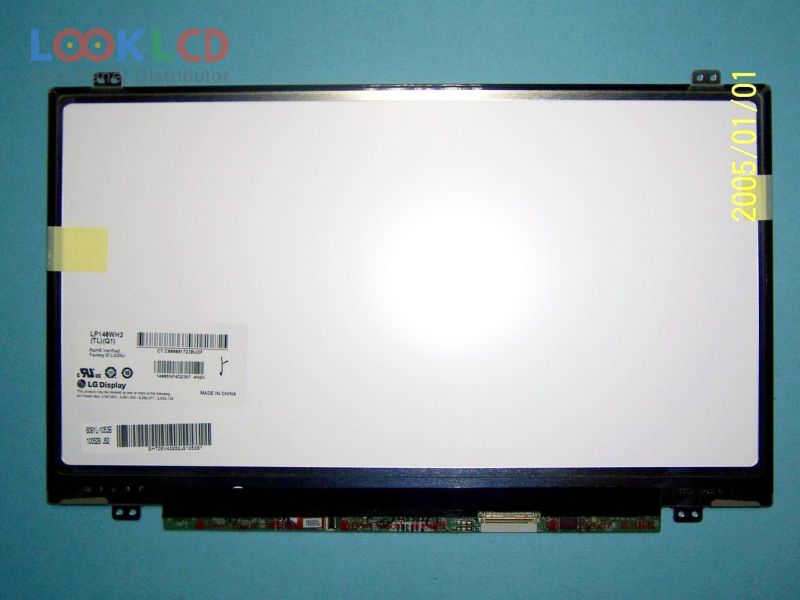

| Varenummer | LP140WH2-TLQ1 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |

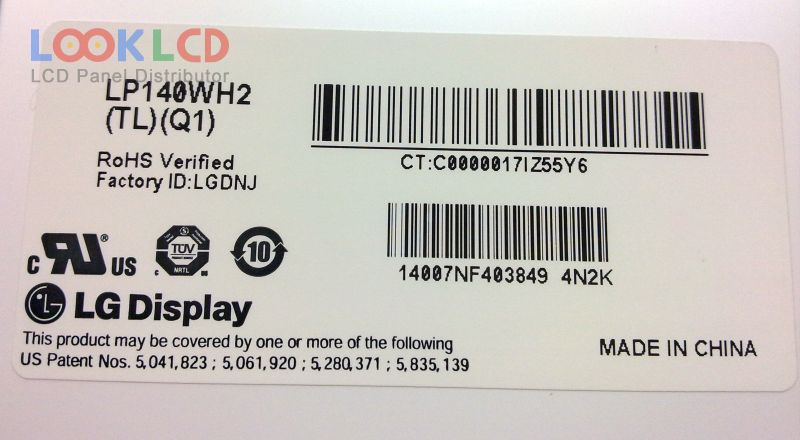

| panel mærke | LG Display |
| panel model | LP140WH2-TLQ1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 322.3×204.6×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H), Reflection 4.5% (Typ.) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
