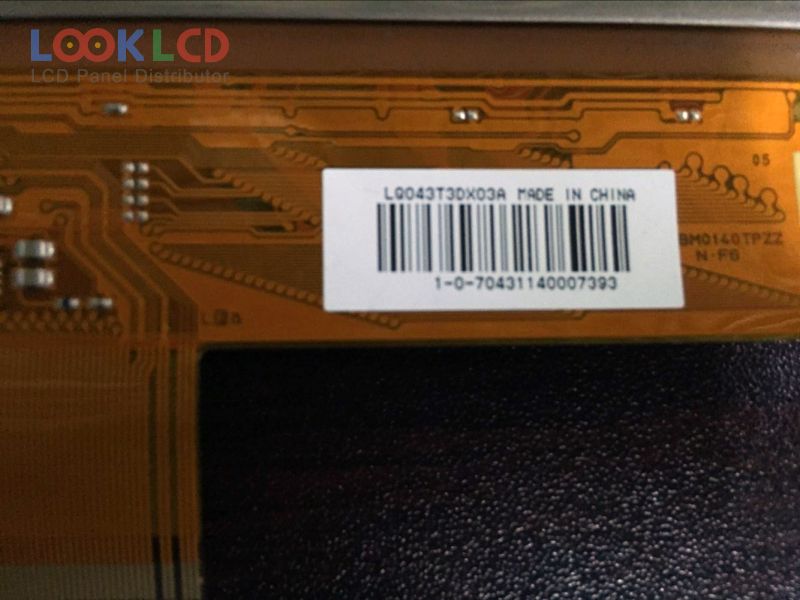

| Varenummer | LQ043T3DX03A |
| Mærke | SHARP |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 165 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ043T3DX03A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 165 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30/30 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | Parallel RGB, 40 pins |
| indgangsspænding | 2.5/5.0V (Typ.)(VCC/AVDD) |
| Ansøgning | PND |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| 35HVF0H | SII | 3.5 | 320×480 |
| 43WQW4T | SII | 4.3 | 480×272 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| LB043WQ3-TD03 | LG Display | 4.3 | 480×272 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
