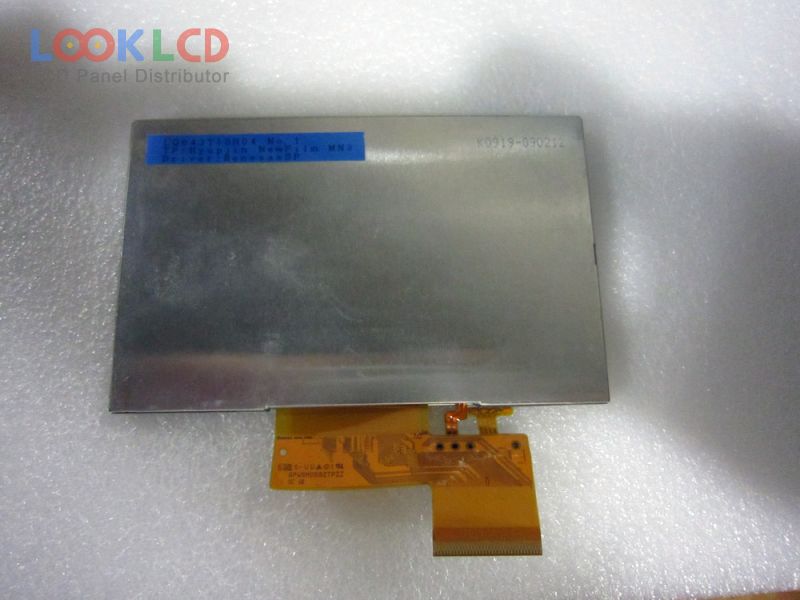

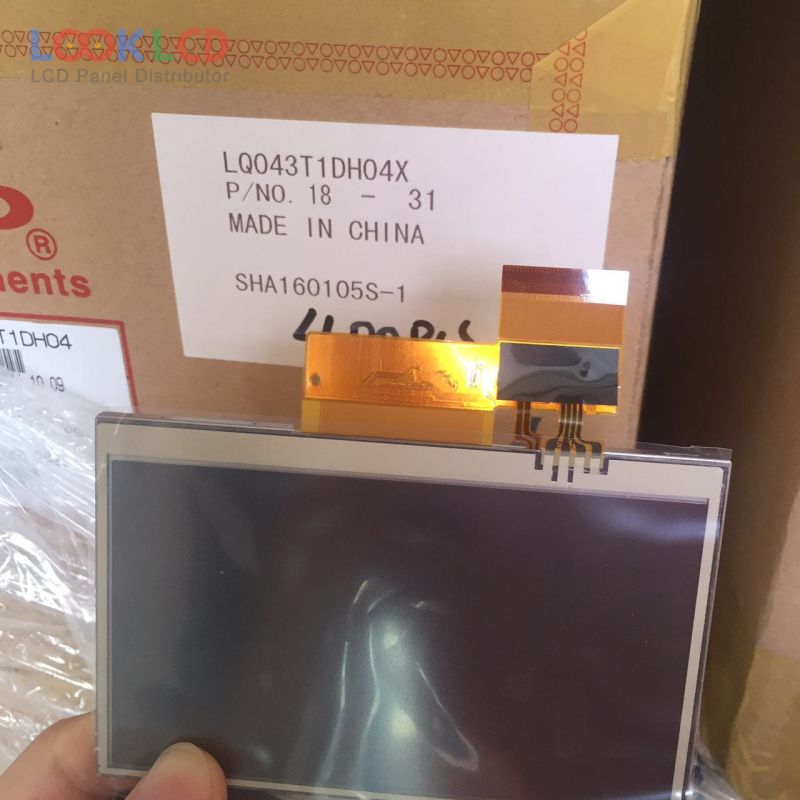

| Varenummer | LQ043T1DH04 |
| Mærke | SHARP |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 360 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ043T1DH04 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2×4.45 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 360 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193148% |
| responstid | 8/8 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| indgangsspænding | 1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI) |
| Ansøgning | PND |
