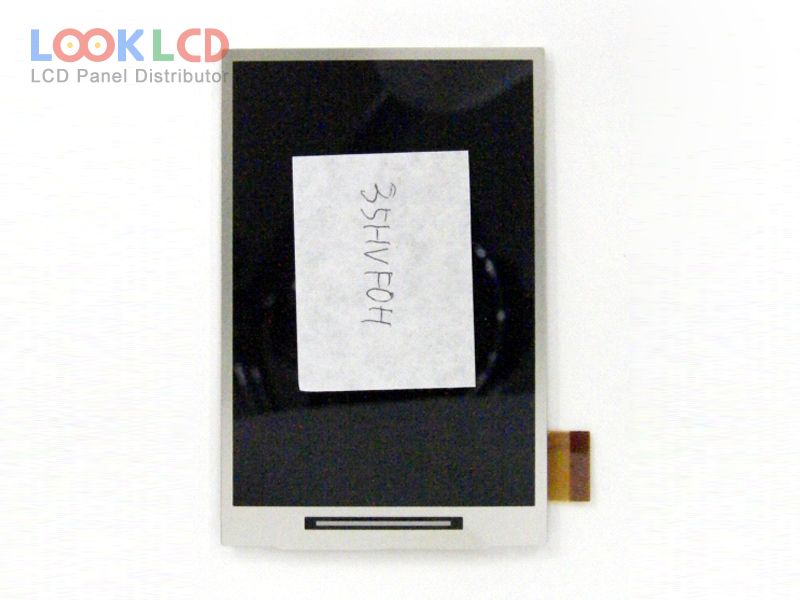

| Varenummer | 35HVF0H |
| Mærke | SII |
| Størrelse | 3.5 |
| Ansøgning | PND |
| Løsning | 320×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SII |
| panel model | 35HVF0H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×480 , HVGA |
| visningstilstand | FFS, Normally Black, Transmissive |
| aktivt område | 49.44×74.16 mm |
| omrids | 55.34×84.55×2.28 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193170% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| Ansøgning | PND |
| 35HVE0H | SII | 3.5 | 320×480 |
| 35HVE1H | SII | 3.5 | 320×480 |
| 35HVF0H | SII | 3.5 | 320×480 |
| A035QN01 V4 | AUO | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| LMS350GF08 | Samsung | 3.5 | 320×240 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LTP350QV-E06 | Samsung | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| LB043WQ3-TD03 | LG Display | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| TS40WD2B-03 | Other | 4.0 | 480×272 |
