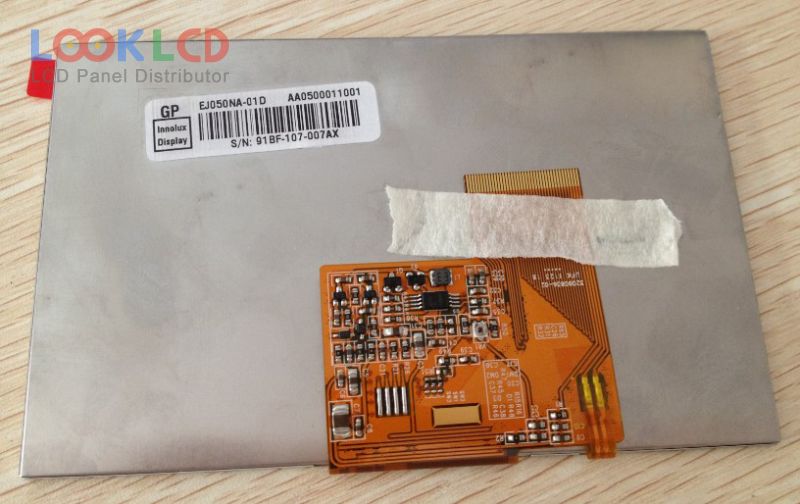

| Varenummer | EJ050NA-01D |
| Mærke | Innolux |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CHIMEI INNOLUX |
| panel model | EJ050NA-01D |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 108×64.8 mm |
| omrids | 120.7×76.3×3.3 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| PD050VL1 | E Ink | 5.0 | 640×480 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| 35HVE0H | SII | 3.5 | 320×480 |
| 43WVF1G | SII | 4.3 | 800×480 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| TM043NDH02 | Tianma | 4.3 | 480×272 |
