| Varenummer | NL10276AC20-03 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 85 |
| CR | 100:1 |
| Farver | 4096 |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |

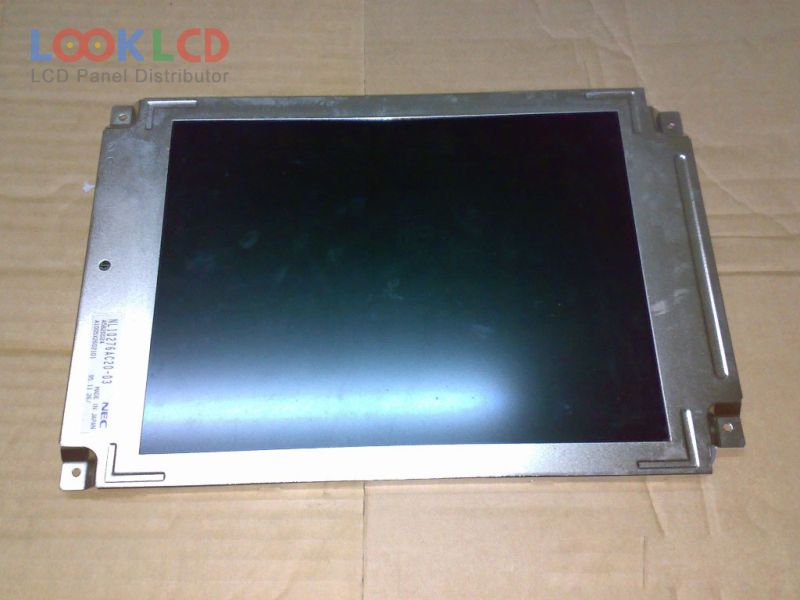

| panel model | NL10276AC20-03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.968×158.976 mm |
| omrids | 282×190×13 mm |
| overflade | |
| lysstyrke | 85 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.) |
| vise farver | 4096 (4-bit), CIE193140% |
| responstid | 40 (Min.)(Tr+Td) |
| synsvinkel | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | TTL (1 ch, 4-bit), 65 pins |
| indgangsspænding | 5.0/12.0V (Typ.)(VCC/VDD) |
| Ansøgning | IA |
