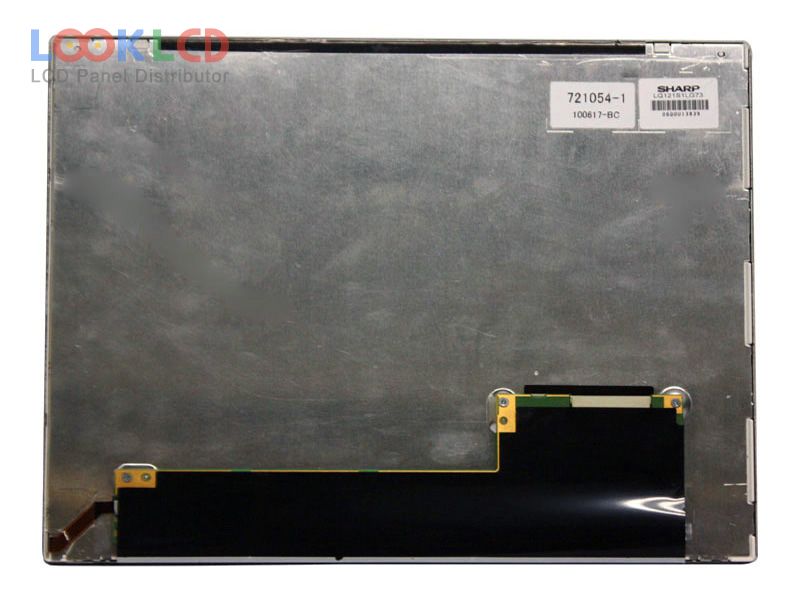

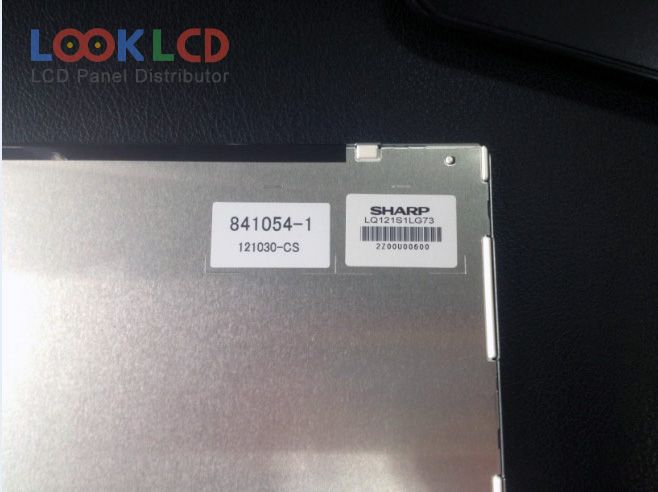

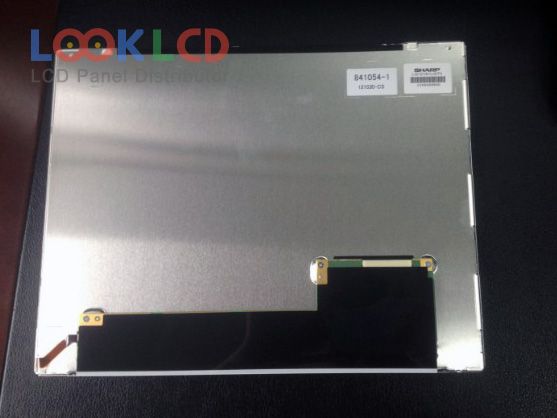

| Varenummer | LQ121S1LG73 |
| Mærke | SHARP |
| Størrelse | 12.1 |
| Ansøgning | GM |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ121S1LG73 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 265×205×10 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193176% |
| responstid | 30 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | GM |
