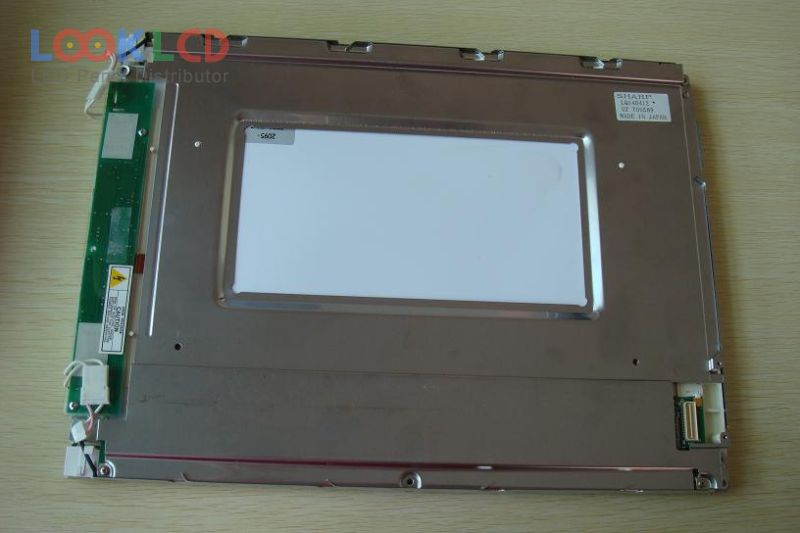

| Varenummer | LQ14D412 |
| Mærke | SHARP |
| Størrelse | 13.8 |
| Ansøgning | DMPC |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 100:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ14D412 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.8 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 281.3×207.8 mm |
| omrids | 330×242 mm |
| overflade | Antiglare (Haze 6%), Hard coating (2H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsCCFLEmbedded (Inverter) |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 5.0V (Typ.)(VCC) |
| Ansøgning | DMPC |
