| Varenummer | LQ201U1LW11Z |
| Mærke | SHARP |
| Størrelse | 20.1 |
| Ansøgning | MD |
| Løsning | 1600×1200 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 1000:1 |
| Farver | Grayscale |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ201U1LW11Z |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 20.1 inch |
| løsning | 1600(LCR)×1200 , UXGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 408×306 mm |
| omrids | 436×335 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | Grayscale (8-bit) |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 pcsCCFLWithout Driver |

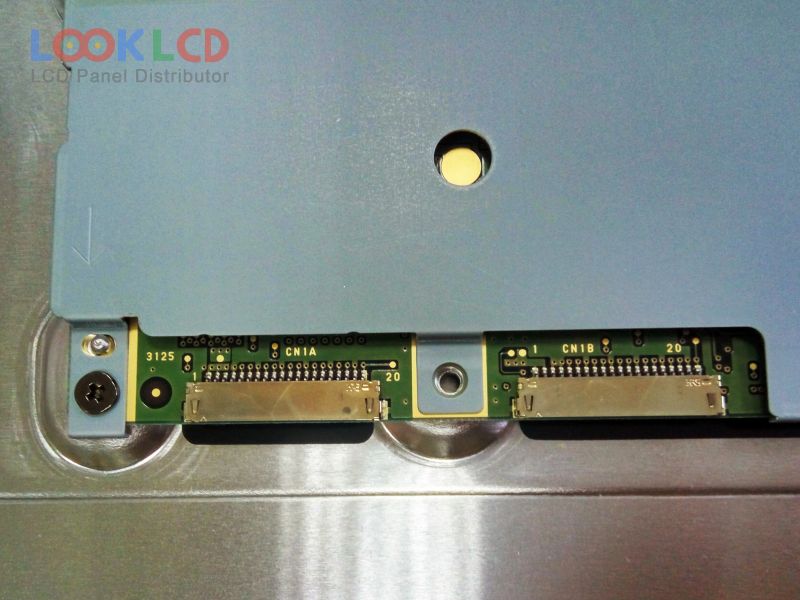

| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | MD |
