| Varenummer | LAM170M023A |
| Mærke | JDI |
| Størrelse | 17.0 |
| Ansøgning | MD |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | JDI |

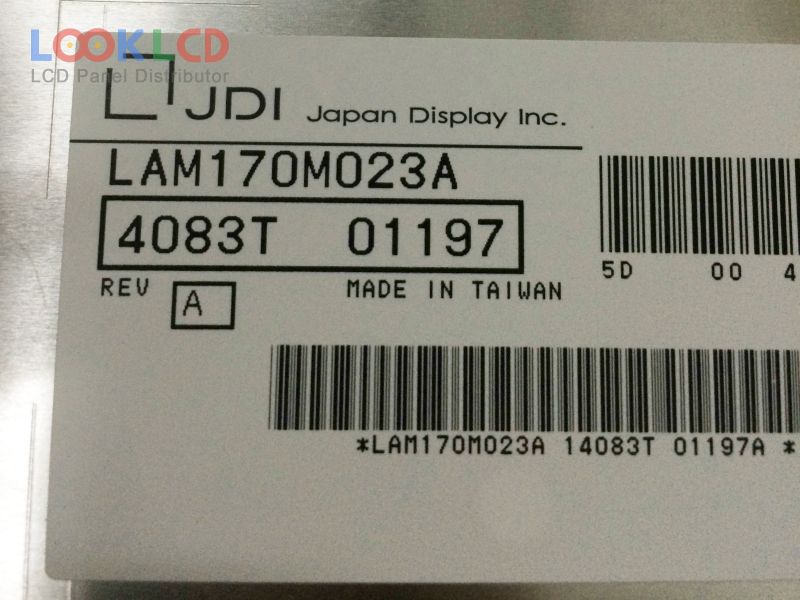

| panel model | LAM170M023A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 337.92×270.336 mm |
| omrids | 368×306×20.4 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193174% |
| responstid | 10/12 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3 stringsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | MD |
