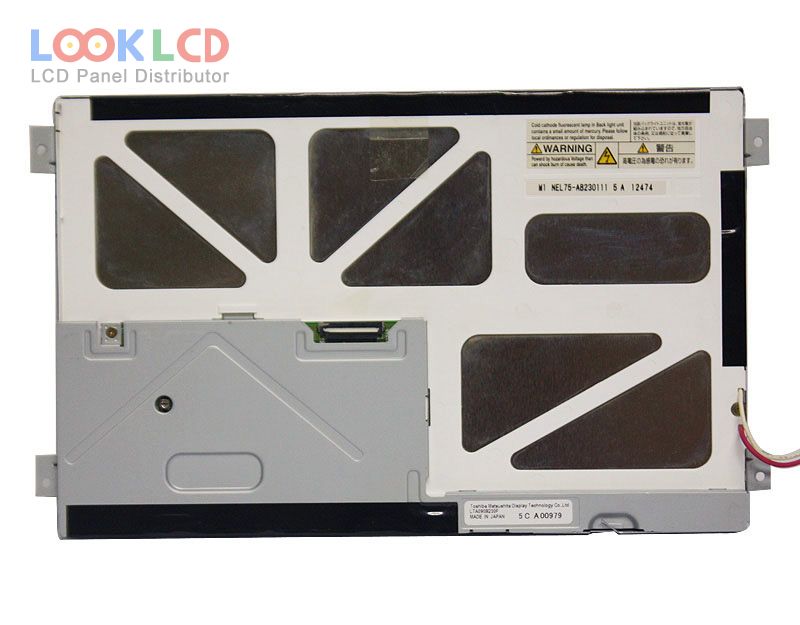

| Varenummer | LTA090B230F |
| Mærke | TOSHIBA |
| Størrelse | 9.0 |
| Ansøgning | IA |
| Løsning | 536×328 |
| Sammensætning | LCM |
| Lysstyrke | 480 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Toshiba Matsushita |
| panel model | LTA090B230F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 536(RGB)×328 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 196.18×120.05 mm |
| omrids | 212.2×135.2 mm |
| overflade | Clear |
| lysstyrke | 480 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 70/40 (Max.)(Tr/Td) |
| synsvinkel | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
