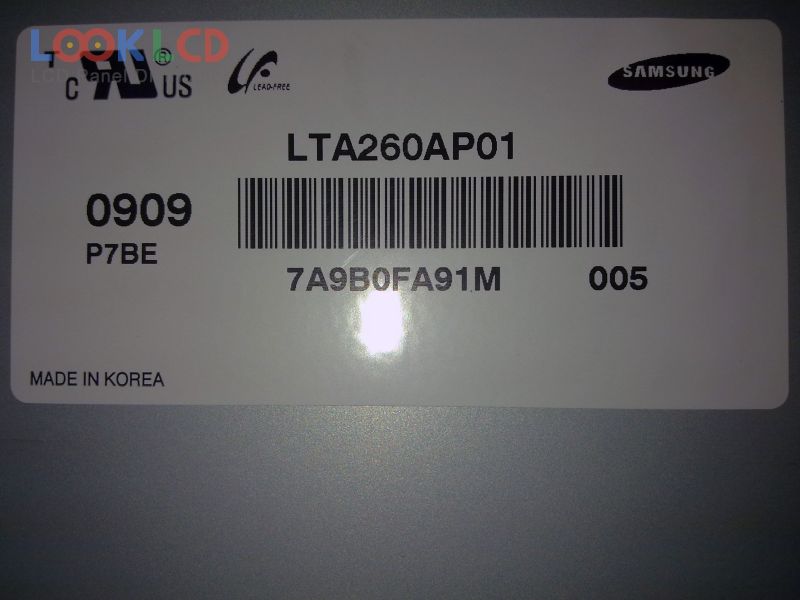

| Varenummer | LTA260AP01 |
| Mærke | Samsung |
| Størrelse | 26.0 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 2000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTA260AP01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 26.0 inch |
| løsning | 1366×768(RGB) , WXGA |
| visningstilstand | APVA, Normally Black, Transmissive |
| aktivt område | 575.769×323.712 mm |
| omrids | 626×373×50 mm |
| overflade | Antiglare (Haze 14%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 2000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| LC260EUN-SCA1 | LG Display | 26.0 | 1920×1080 |
| LC260WUN-SBA1 | LG Display | 26.0 | 1920×1080 |
| LTA260AP01 | Samsung | 26.0 | 1366×768 |
| LTA260AP02 | Samsung | 26.0 | 1366×768 |
| LTA260AP08 | Samsung | 26.0 | 1366×768 |
| LTA260AP10 | Samsung | 26.0 | 1366×768 |
| LTA260W2-L12 | Samsung | 26.0 | 1366×768 |
| T260XW02 V9 | AUO | 26.0 | 1366×768 |
| T260XW04 V6 | AUO | 26.0 | 1366×768 |
| HT260WXC-100 | BOE | 26.0 | 1366×768 |
| LC320DUE-FGA4 | LG Display | 31.5 | 1920×1080 |
| LC420WUE-SCA2 | LG Display | 42 | 1920×1080 |
| LTA320AP33 | Samsung | 31.5 | 1366×768 |
| LTA320WT-L16 | Samsung | 31.5 | 1366×768 |
| LTY260W2-L06 | Samsung | 26.0 | 1366×768 |
| LTY460HB01 | Samsung | 46 | 1920×1080 |
| V315B6-L04 | Innolux | 31.5 | 1366×768 |
| V400H1-L03 | Innolux | 40 | 1920×1080 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
