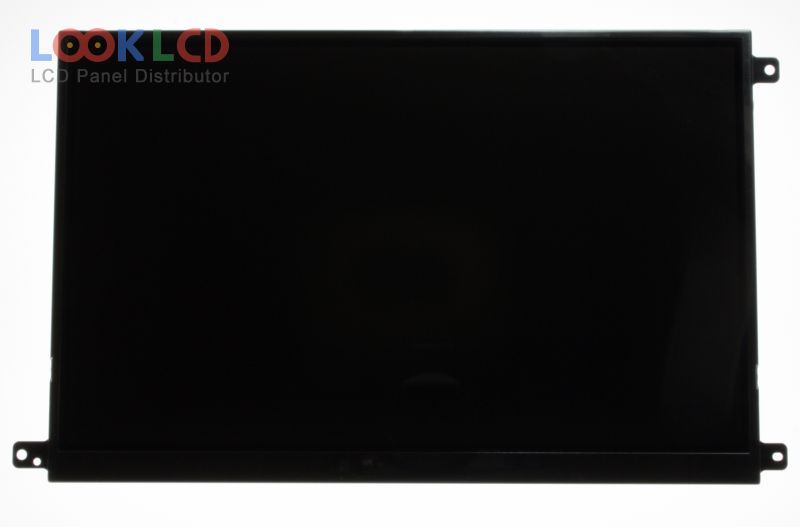

| Varenummer | LTD089EXWS |
| Mærke | TOSHIBA |
| Størrelse | 8.9 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 225 |
| CR | 140:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Toshiba Mobile Display |
| panel model | LTD089EXWS |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 8.9 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 193.92×116.352 mm |
| omrids | 224×133×5.15 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 225 cd/m² (Typ.) |
| kontrastforhold | 140:1 (Typ.)(Transmissive) |
| vise farver | 262K (6-bit) |
| responstid | 80 (Max.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
