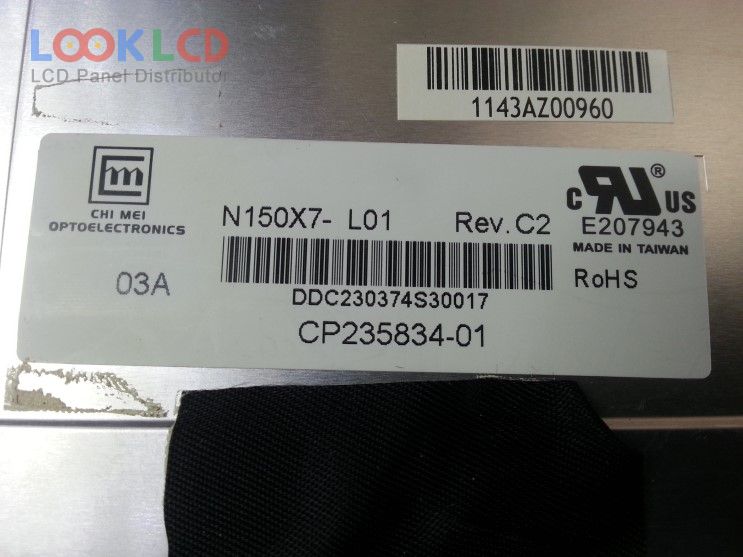

| Varenummer | N150X7-L01 |
| Mærke | Innolux |
| Størrelse | 15.0 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N150X7-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 317.3×242×10.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193172% |
| responstid | 4/10 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
