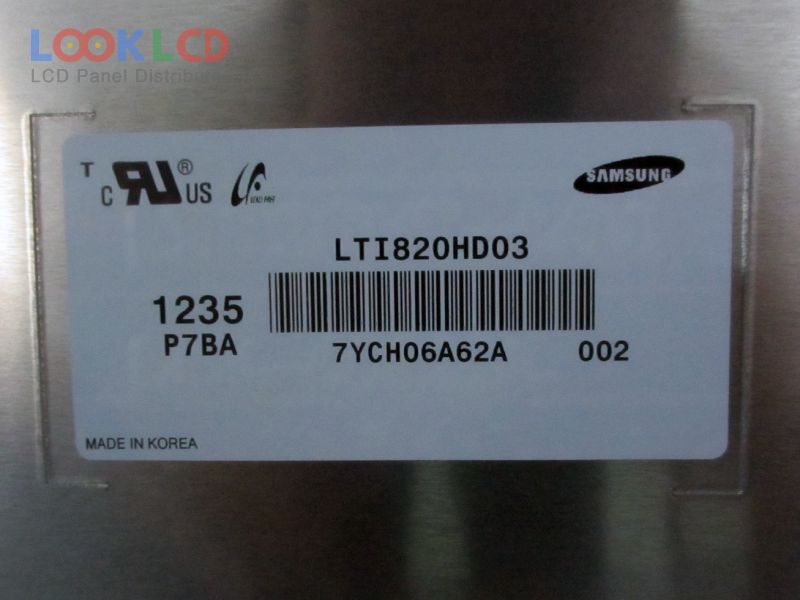

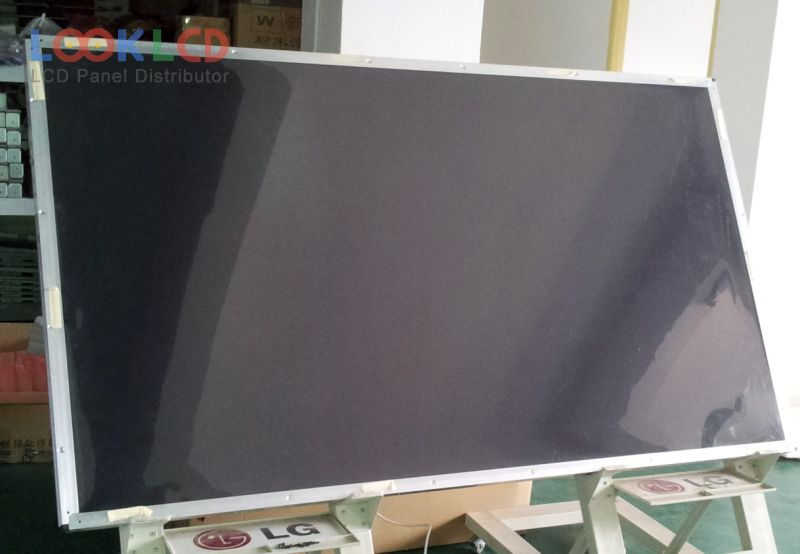

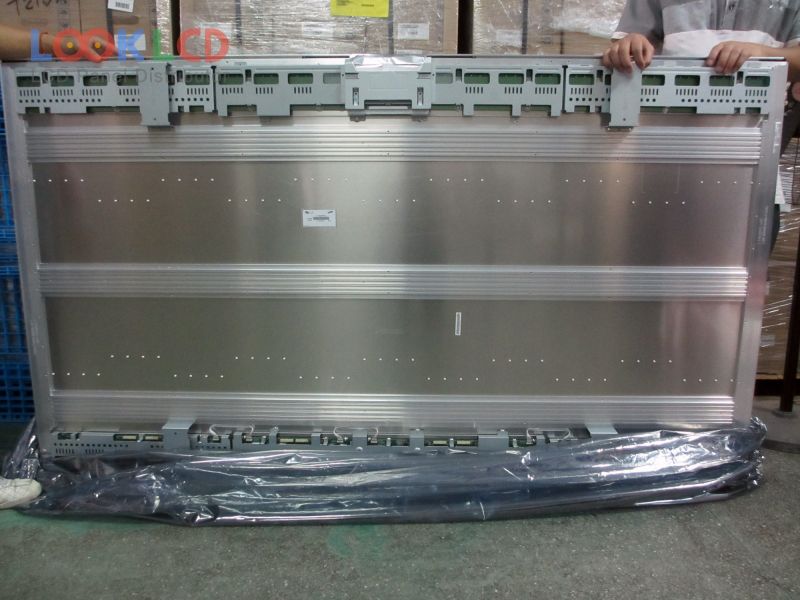

| Varenummer | LTI820HD03 |
| Mærke | Samsung |
| Størrelse | 82 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 2000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTI820HD03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 82 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 1805.76×1015.74 mm |
| omrids | 1878.6×1083.6×92.5 mm |
| overflade | Antiglare (Haze 4%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 2000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 88 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| LTI820HA01 | Samsung | 82 | 1920×1080 |
| LTI820HD03 | Samsung | 82 | 1920×1080 |
| LTI820HT-L01 | Samsung | 82 | 1920×1080 |
| BRS550H2 | BERISE | 55 | 1920×1080 |
| LD420WUB-SCA1 | LG Display | 42 | 1920×1080 |
| LD470DUE-SFR1 | LG Display | 47 | 1920×1080 |
| LD470WUN-SCA1 | LG Display | 47 | 1920×1080 |
| LD550WUP-SCA1 | LG Display | 55 | 1920×1080 |
| LQ695D3LG04 | SHARP | 70 | 1920×1080 |
| LTI320AP02 | Samsung | 31.5 | 1366×768 |
| LTI370LN03 | Samsung | 37 | 1920×540 |
| LTI460AA03 | Samsung | 46 | 1366×768 |
| LTI460HN08 | Samsung | 46 | 1920×1080 |
