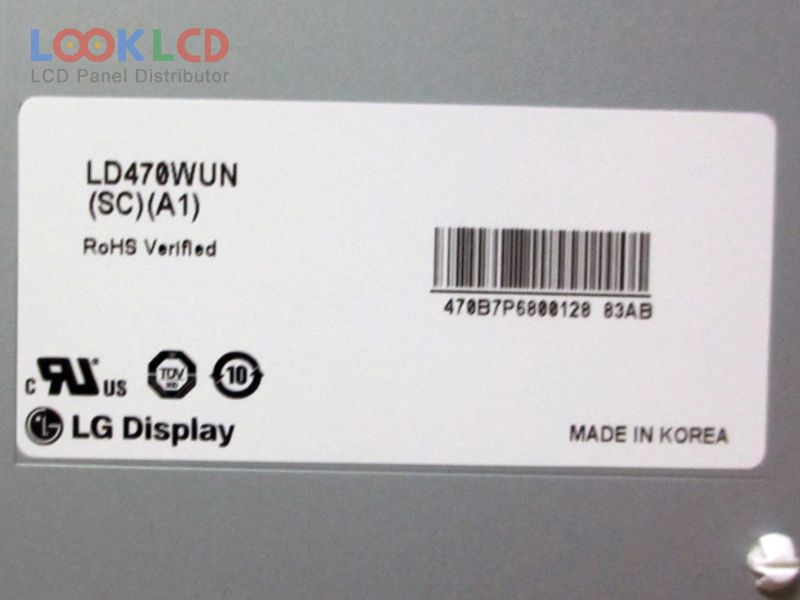

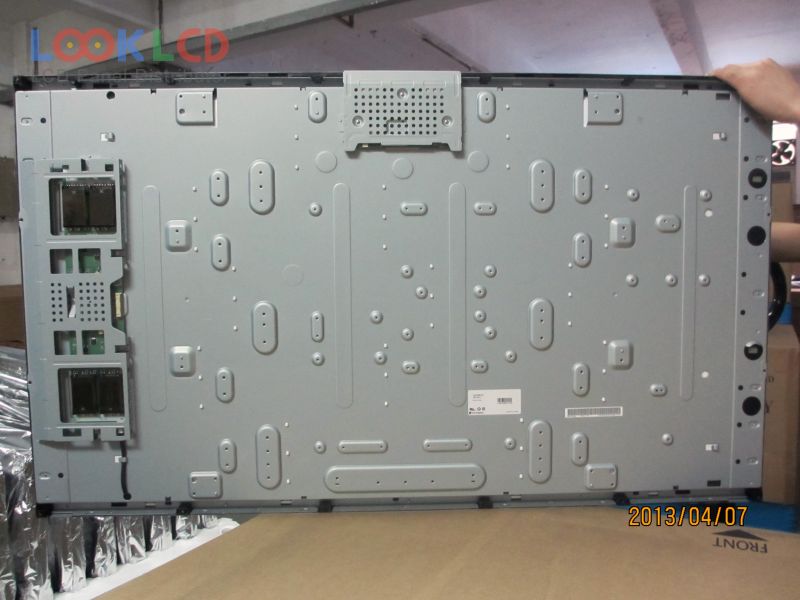

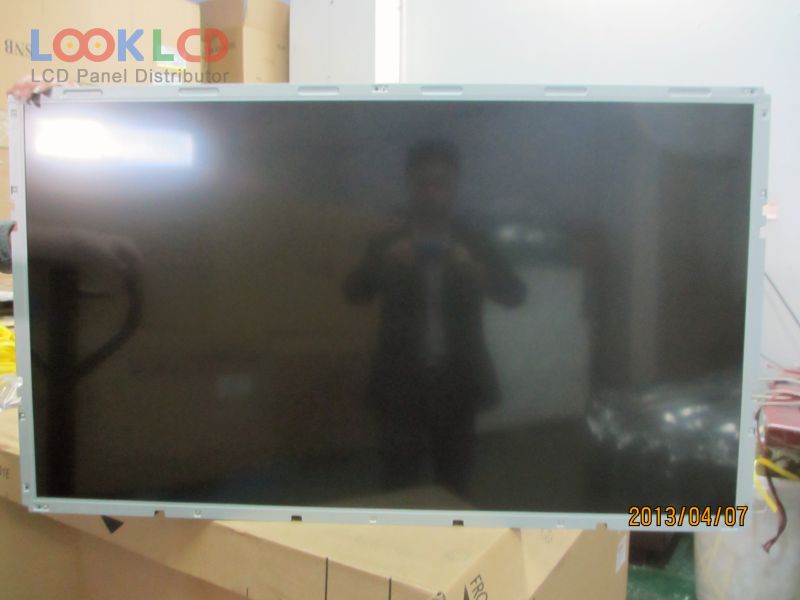

| Varenummer | LD470WUN-SCA1 |
| Mærke | LG Display |
| Størrelse | 47 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 1300:1 |
| Farver | 16.7M/1.06B |
| Baggrundsbelysning | EEFL |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LD470WUN-SCA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 47 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 1039.68×584.82 mm |
| omrids | 1096×640 mm |
| overflade | Antiglare (Haze 10%), Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 1300:1 (Typ.) |
| vise farver | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| responstid | 10 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | EEFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8/10-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| LC470EUD-SDM1 | LG Display | 47 | 1920×1080 |
| LC470EUF-SDF1 | LG Display | 47 | 1920×1080 |
| LC470EUH-PFP1 | LG Display | 47 | 1920×1080 |
| LC470EUN-FEF1 | LG Display | 47 | 1920×1080 |
| LC470WUN-SCA1 | LG Display | 47 | 1920×1080 |
| LC470WUN-SDA1 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD470WUB-SCA1 | LG Display | 47 | 1920×1080 |
| LD470WUN-SCA1 | LG Display | 47 | 1920×1080 |
| V470H2-LE1 | Innolux | 47 | 1920×1080 |
| LD420EUP-SEA1 | LG Display | 42 | 1920×1080 |
| LD550EUE-FHB1 | LG Display | 55 | 1920×1080 |
| LTI400HA01 | Samsung | 40 | 1920×1080 |
| LTI400HA05 | Samsung | 40 | 1920×1080 |
| LTI400HA06 | Samsung | 40 | 1920×1080 |
| LTI460AA01-001 | Samsung | 46 | 1366×768 |
| LTI700HD01 | Samsung | 70 | 1920×1080 |
| P550HVN06.0 | AUO | 55 | 1920×1080 |
| P645HW01 V0 | AUO | 65 | 1920×1080 |
| RX415TXP01 | ROGIN | 41.5 | 1920×540 |
