| Varenummer | LTL089CL02-002 |
| Mærke | Samsung |
| Størrelse | 8.9 |
| Ansøgning | PAD |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 900:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | SAMSUNG |

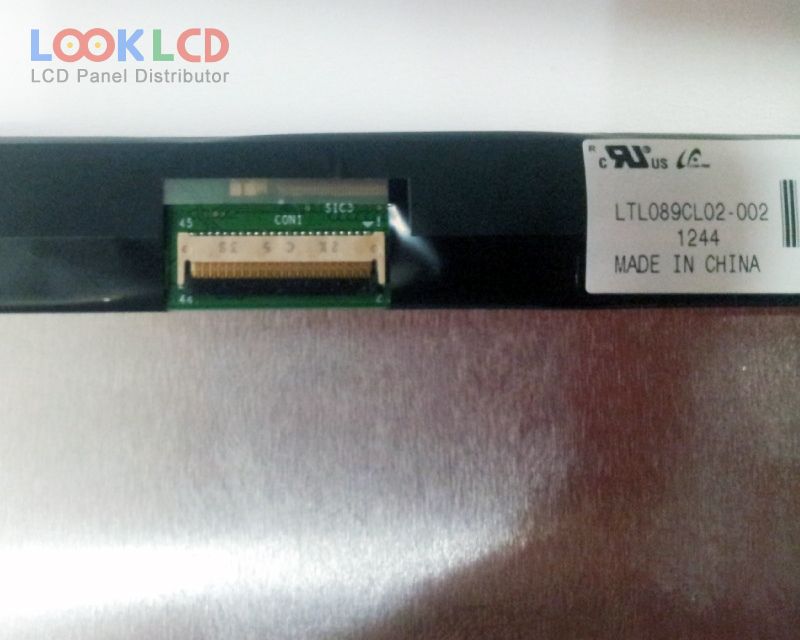

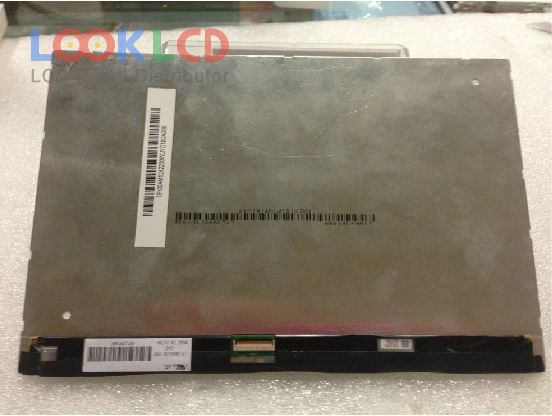

| panel model | LTL089CL02-002 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.9 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 191.52×119.7 mm |
| omrids | 203.5×135.9×5.2 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S5PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
