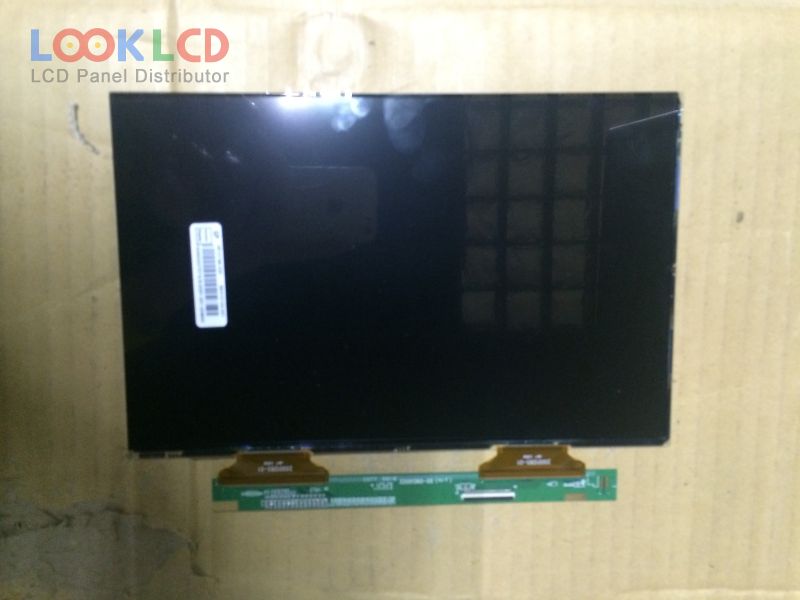

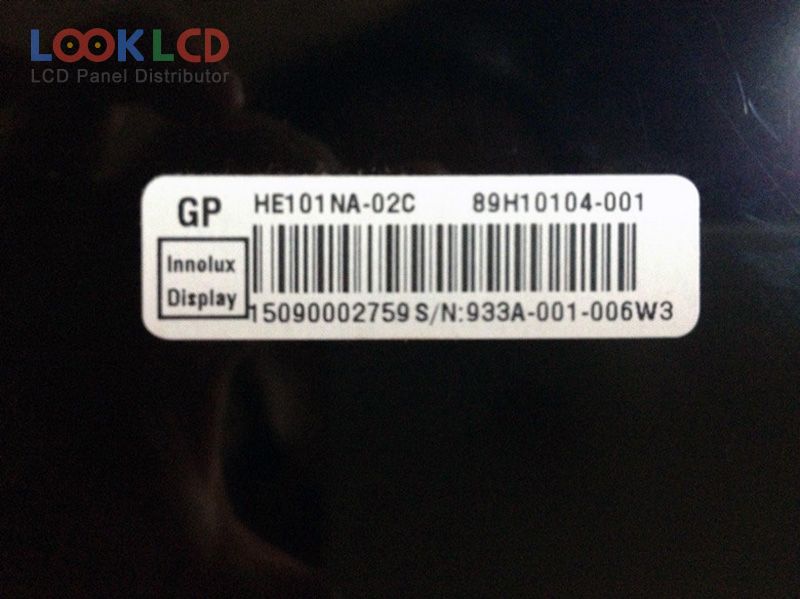

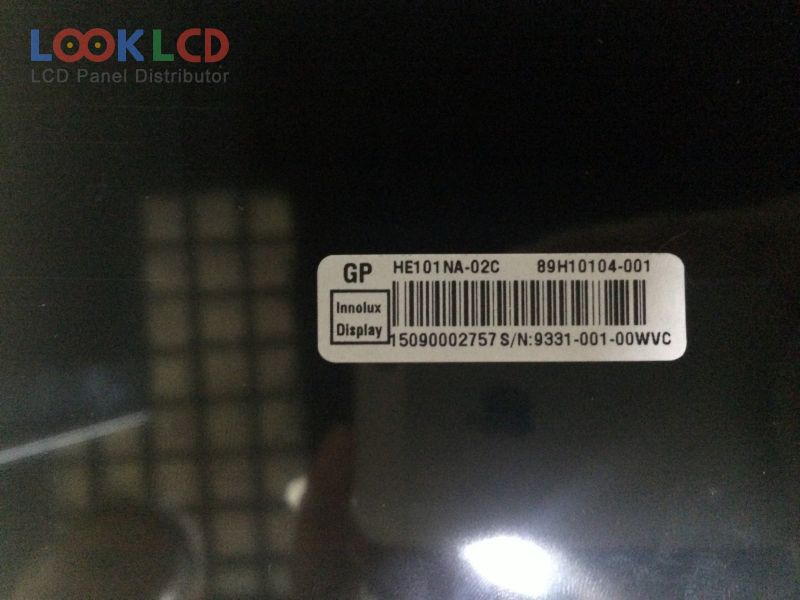

| Varenummer | HE101NA-02C |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | TTL |
| panel mærke | CHIMEI INNOLUX |
| panel model | HE101NA-02C |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 224.21×145×1.43 mm |
| overflade | Glare (Haze 0%) |
| glas dybde | 0.50+0.50 mm |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
