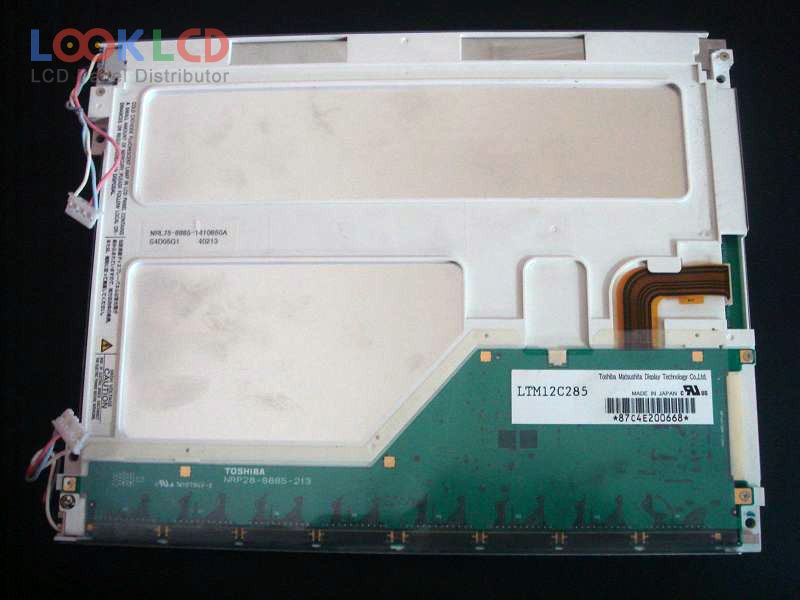

| Varenummer | LTM12C285 |
| Mærke | TOSHIBA |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Toshiba Matsushita |
| panel model | LTM12C285 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 278.3×216×13.5 mm |
| overflade | |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 50/50 (Max.)(Tr/Td) |
| synsvinkel | |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 32 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | IA |
