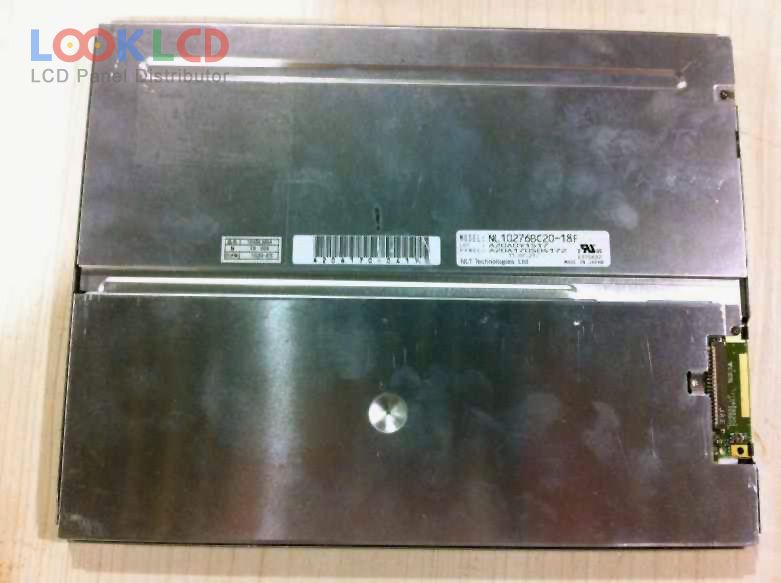

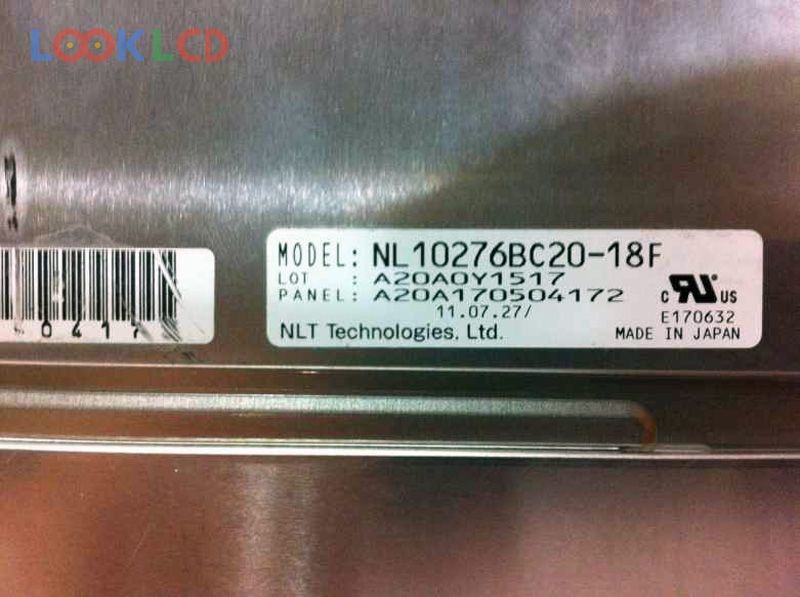

| Varenummer | NL10276BC20-18F |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 800 |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276BC20-18F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 210.4×157.8 mm |
| omrids | 228×178.5×9.2 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 800 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| responstid | 3/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
