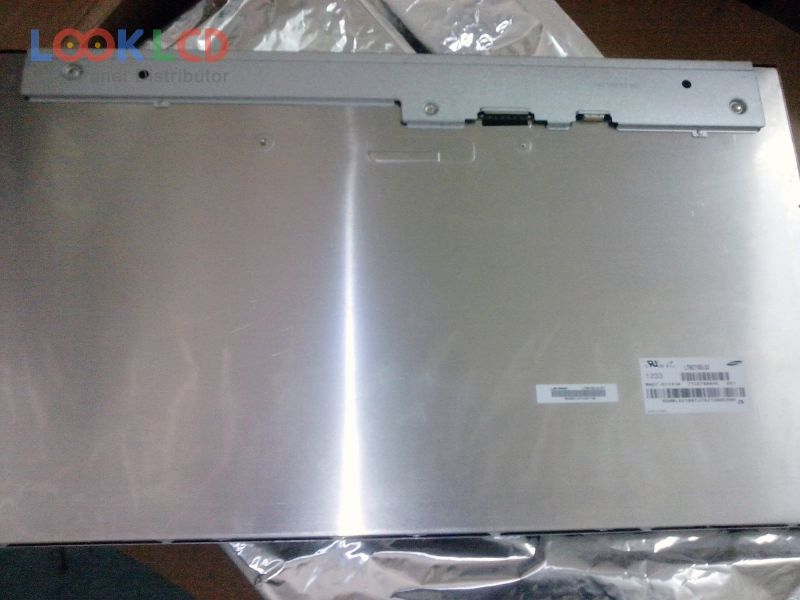

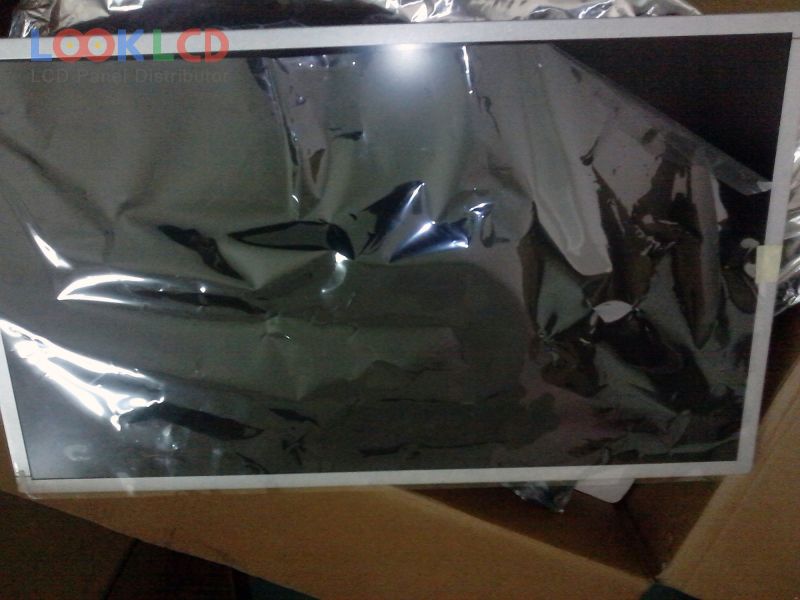

| Varenummer | LTM270DL02 |
| Mærke | Samsung |
| Størrelse | 27.0 |
| Ansøgning | DMPC |
| Løsning | 2560×1440 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTM270DL02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 27.0 inch |
| løsning | 2560(RGB)×1440 , Quad-HD |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 596.736×335.664 mm |
| omrids | 630×368.2×16.1 mm |
| overflade | Antiglare (Haze 42%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 12 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16S4PWLEDWithout Driver |
| signal interface | LVDS (4 ch, 8-bit), 66 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
