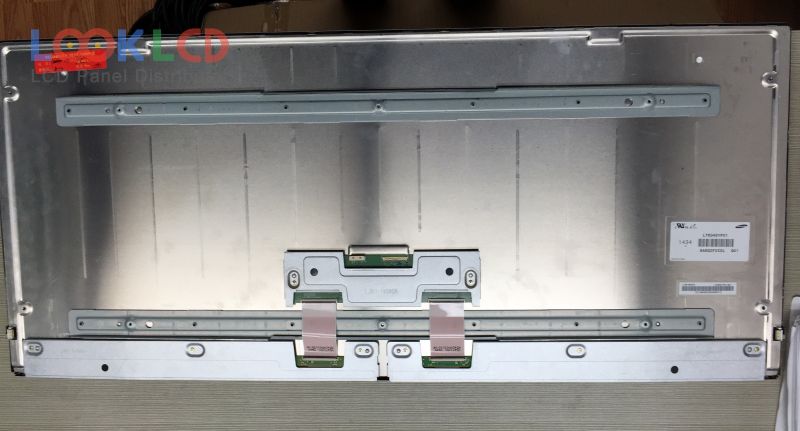

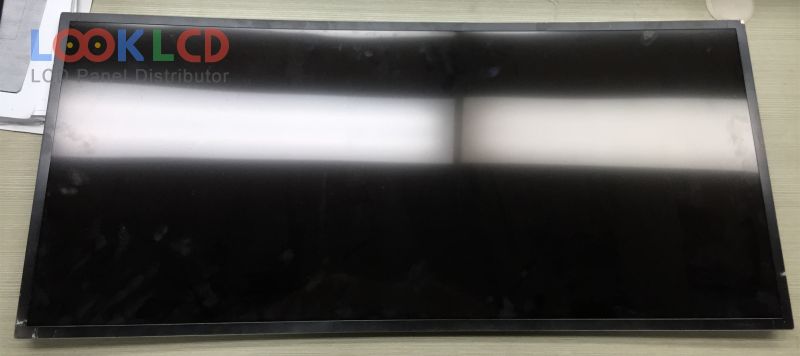

| Varenummer | LTM340YP01 |
| Mærke | Samsung |
| Størrelse | 34 |
| Ansøgning | DMPC |
| Løsning | 3440×1440 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 3000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | SAMSUNG |
| panel model | LTM340YP01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 34 inch |
| løsning | 3440(RGB)×1440 |
| visningstilstand | PVA, Normally Black, Transmissive |
| aktivt område | 799.8×334.8 mm |
| omrids | 821.3×360.6×19.3 mm |
| overflade | Antiglare (Haze 2.3%), Hard coating (2H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 3000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193175% |
| responstid | 14 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 stringsWLEDWithout Driver |
| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
