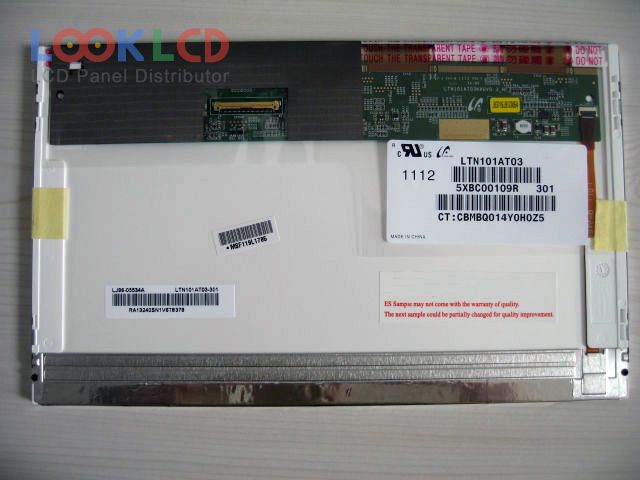

| Varenummer | LTN101AT03-801 |
| Mærke | Samsung |
| Størrelse | 10.1 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN101AT03-801 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.726×125.222 mm |
| omrids | 232×135.33 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | 45/45/20/40 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| LP171WU1-TLA1 | LG Display | 17.1 | 1920×1200 |
| LT121SU-121 | Samsung | 12.1 | 800×600 |
| LTN121W1-L03 | Samsung | 12.1 | 1280×800 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| LTN140HL02-B01 | Samsung | 14.0 | 1920×1080 |
| LTN173KT01-H01 | Samsung | 17.3 | 1600×900 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
