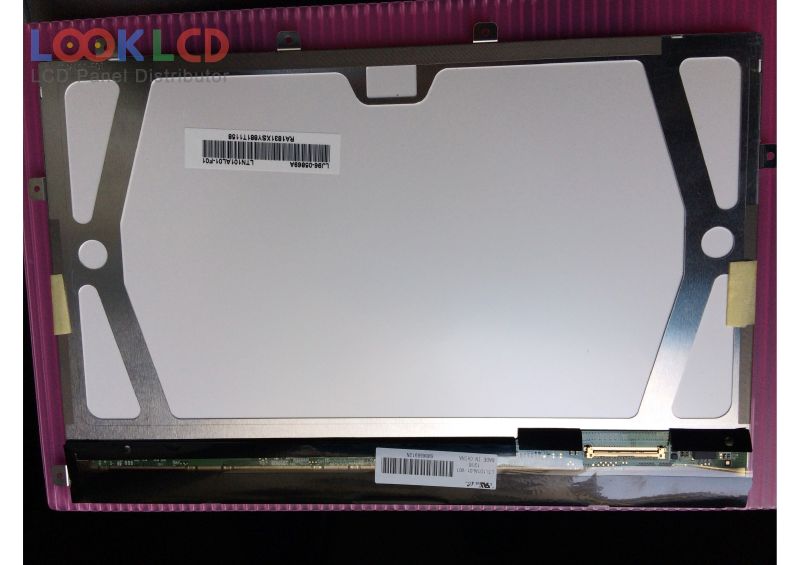

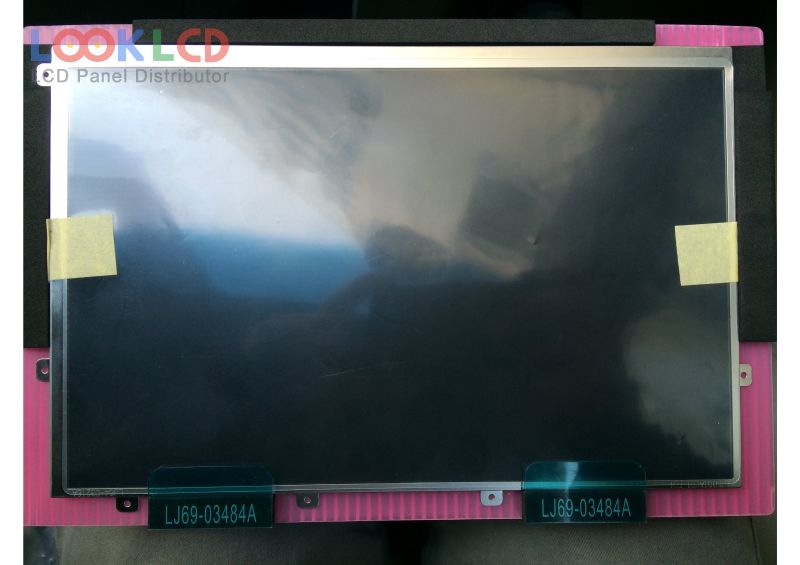

| Varenummer | LTN101AL01-F01 |
| Mærke | Samsung |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN101AL01-F01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 235×149.87×5.4 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193145% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| LTL106HL02-001 | Samsung | 10.6 | 1920×1080 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
