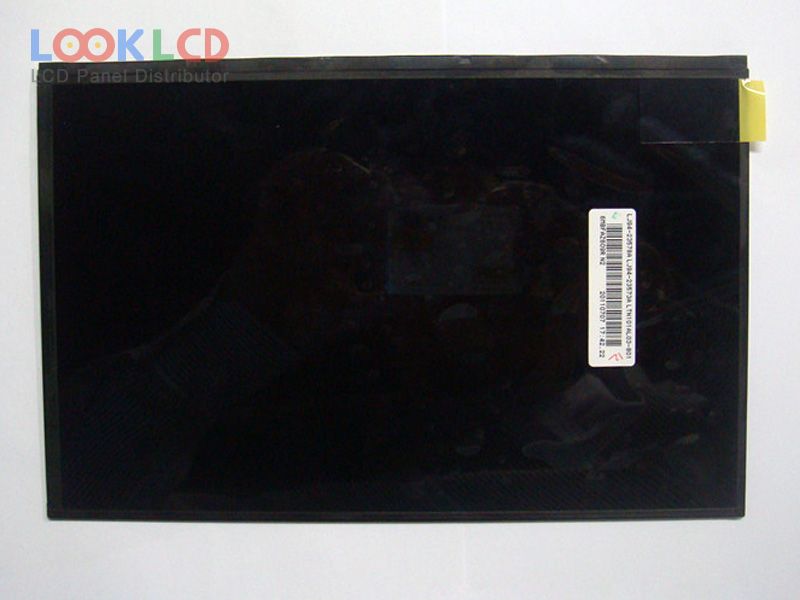

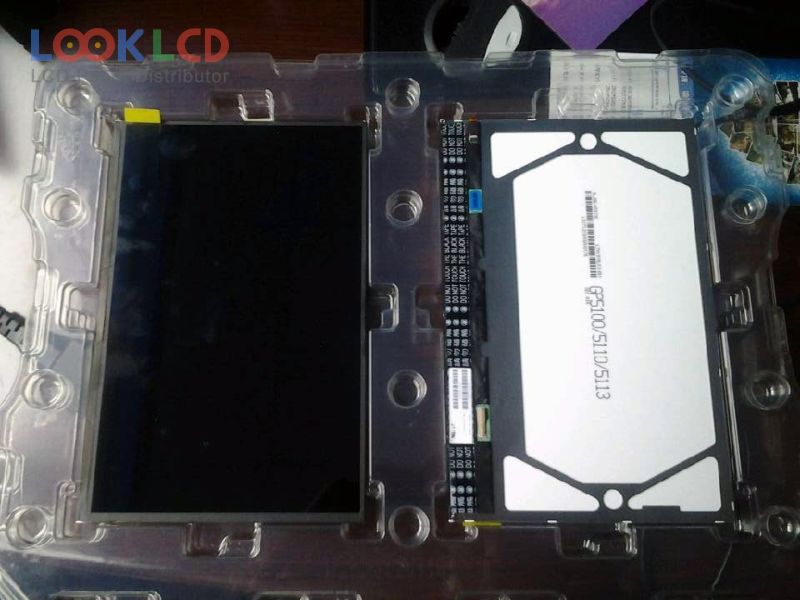

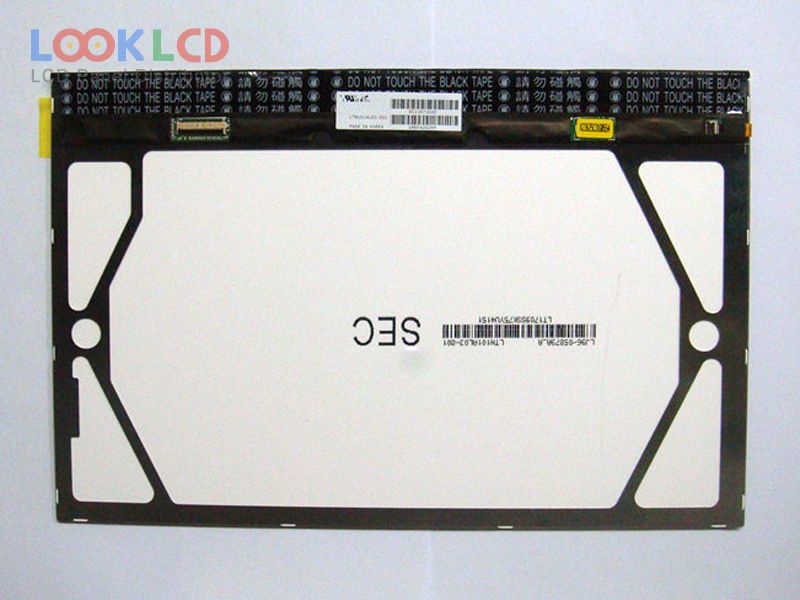

| Varenummer | LTN101AL03-801 |
| Mærke | Samsung |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 900:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN101AL03-801 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 229.96×149.8×4.59 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S4PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| DLC1010AZG-1 | Other | 10.1 | 1024×600 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| LP101WX1-SLB1 | LG Display | 10.1 | 1280×800 |
| LP101WX1-SLN2 | LG Display | 10.1 | 1280×800 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| TV096WXM-NS0 | BOE | 9.6 | 800×1280 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| VVX10F002A00 | Panasonic | 10.1 | 1920×1200 |
