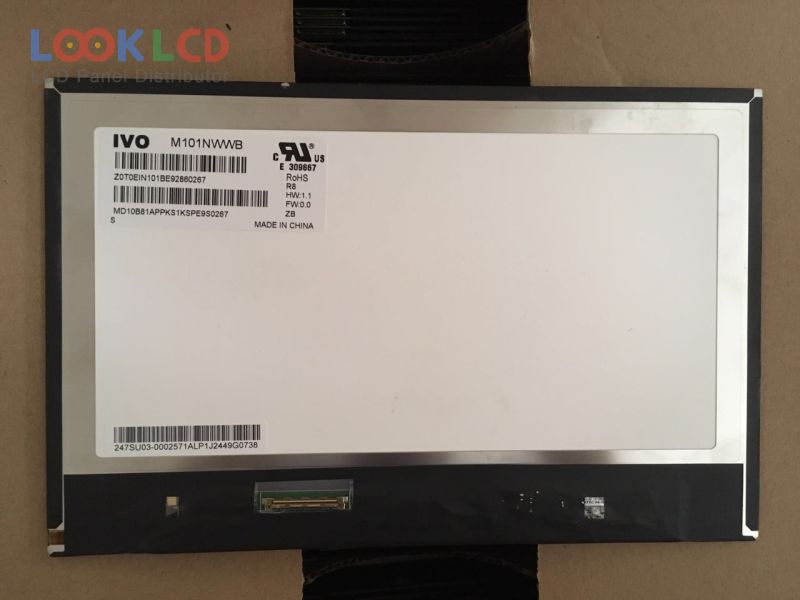

| Varenummer | M101NWWB R8 |
| Mærke | IVO |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M101NWWB R8 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 229.46×149.1×4.56 mm |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193145% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| M101NWN8 R0 | IVO | 10.1 | 1366×768 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| M101NWT2 R1 | IVO | 10.1 | 1024×600 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| B116HAT03.1 | AUO | 11.6 | 1920×1080 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLQE | LG Display | 9.7 | 1024×768 |
| NDS0708001280-31 | SEBO | 7.0 | 800×1280 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
