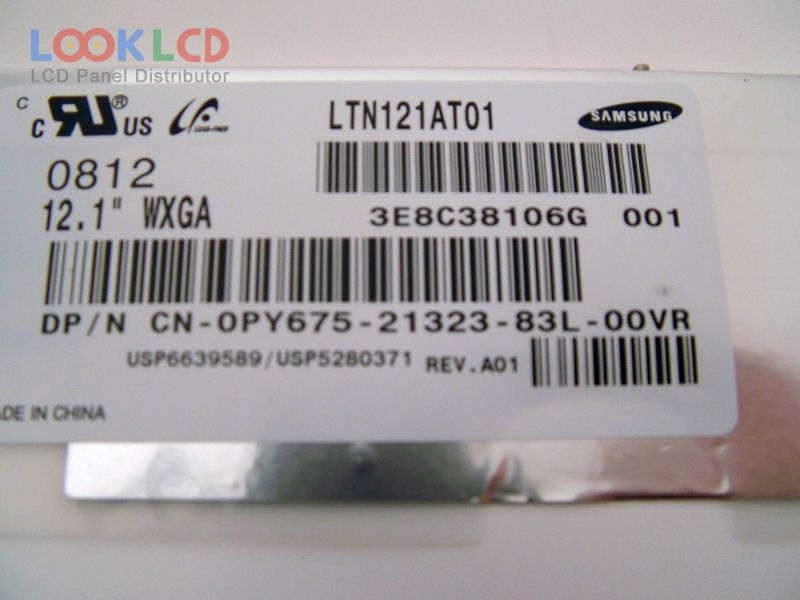

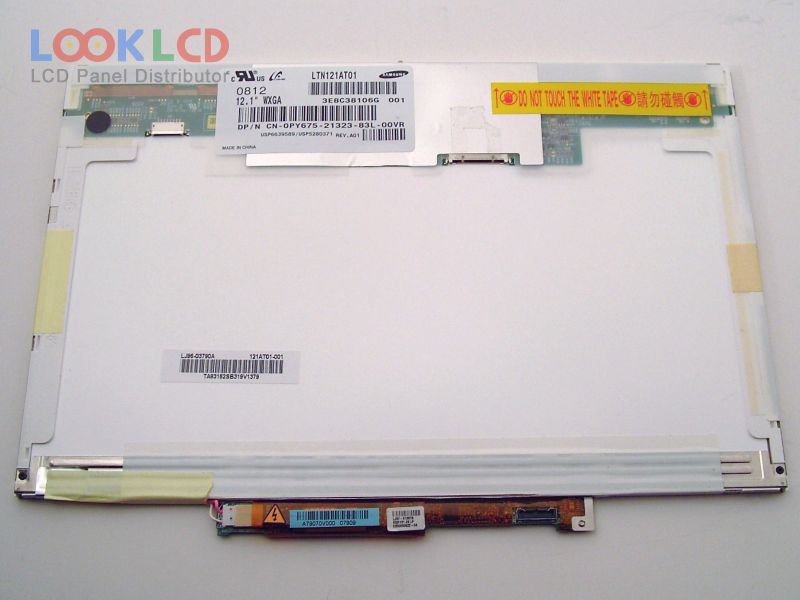

| Varenummer | LTN121AT01-001 |
| Mærke | Samsung |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN121AT01-001 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 261.12×163.2 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (1 ch, 6-bit) |
| Ansøgning | NBPC |
