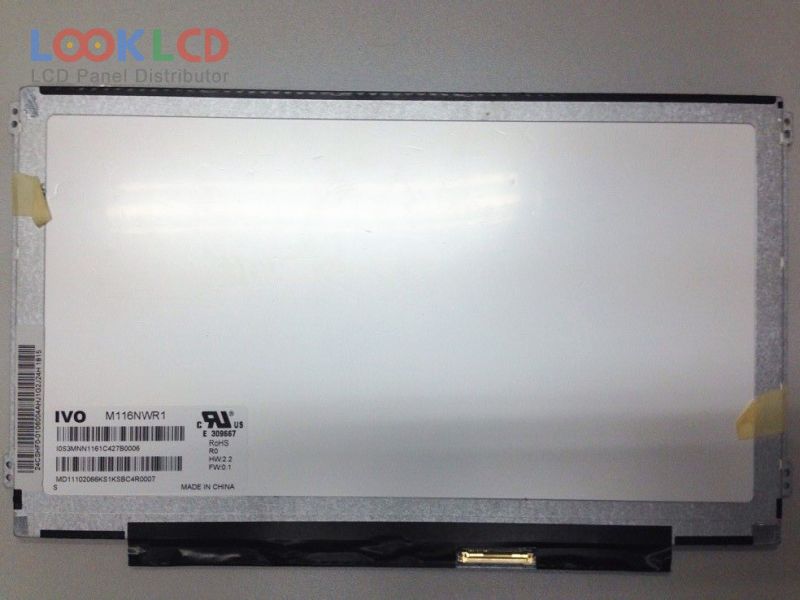

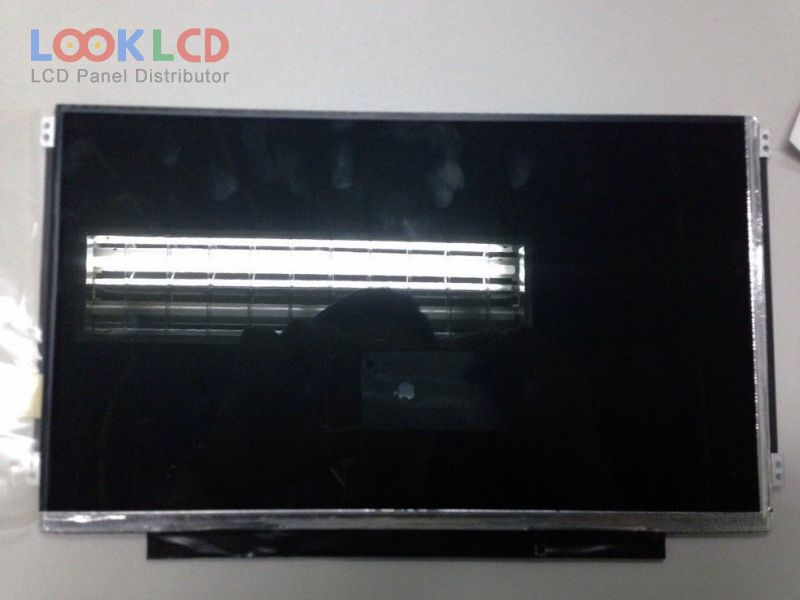

| Varenummer | M116NWR1 R0 |
| Mærke | IVO |
| Størrelse | 11.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M116NWR1 R0 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 278×167×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 10 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| LP116WH1-TLP1 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| M116NWR1 R7 | IVO | 11.6 | 1366×768 |
| M116NWR4 R0 | IVO | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| LP104V2-W | LG Display | 10.4 | 640×480 |
| LP154WE2-TLB1 | LG Display | 15.4 | 1680×1050 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WP4-TLN2 | LG Display | 17.1 | 1440×900 |
| LP171WP6-TL04 | LG Display | 17.1 | 1440×900 |
| LTN140KT03 | Samsung | 14.0 | 1600×900 |
| LTN150PF-L03 | Samsung | 15.0 | 1400×1050 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
