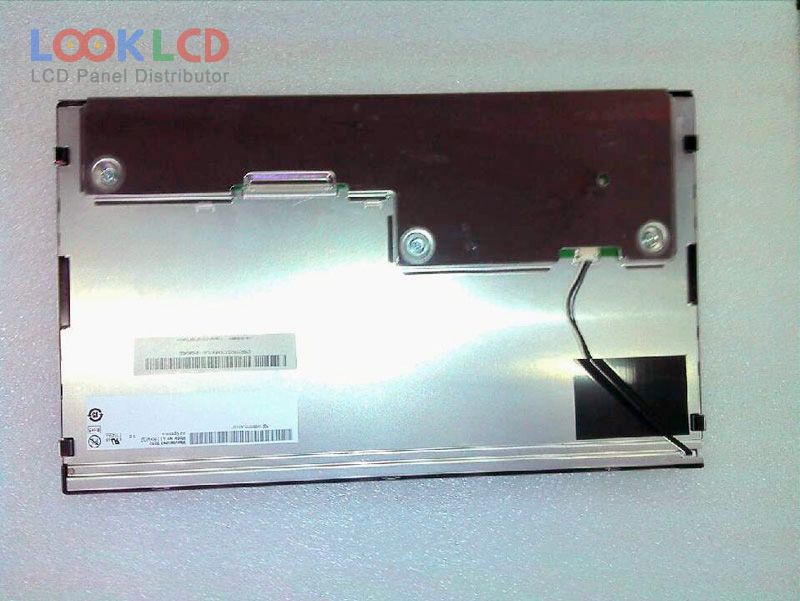

| Varenummer | A116XW02 V0 |
| Mærke | AUO |
| Størrelse | 11.6 |
| Ansøgning | GM |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 275 |
| CR | 450:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | A116XW02 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 282.2×168×13 mm |
| overflade | Antiglare |
| lysstyrke | 275 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| responstid | 4/8 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/35/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | GM |
