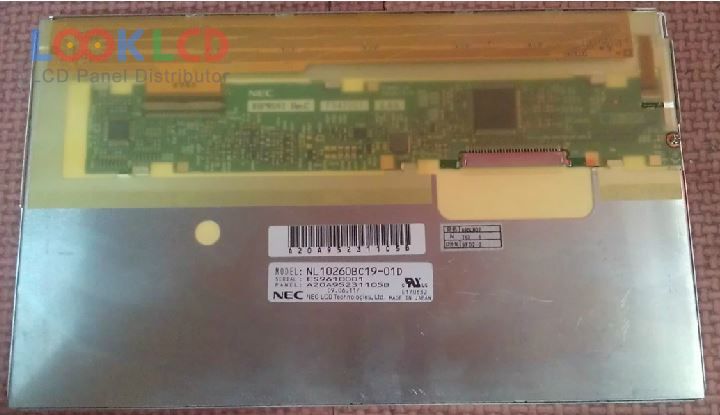

| Varenummer | NL10260BC19-01D |
| Mærke | NLT |
| Størrelse | 8.9 |
| Ansøgning | IA |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10260BC19-01D |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.9 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | UA-SFT, Normally Black, Transmissive |
| aktivt område | 195.072×113.4 mm |
| omrids | 214×129×6.2 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
