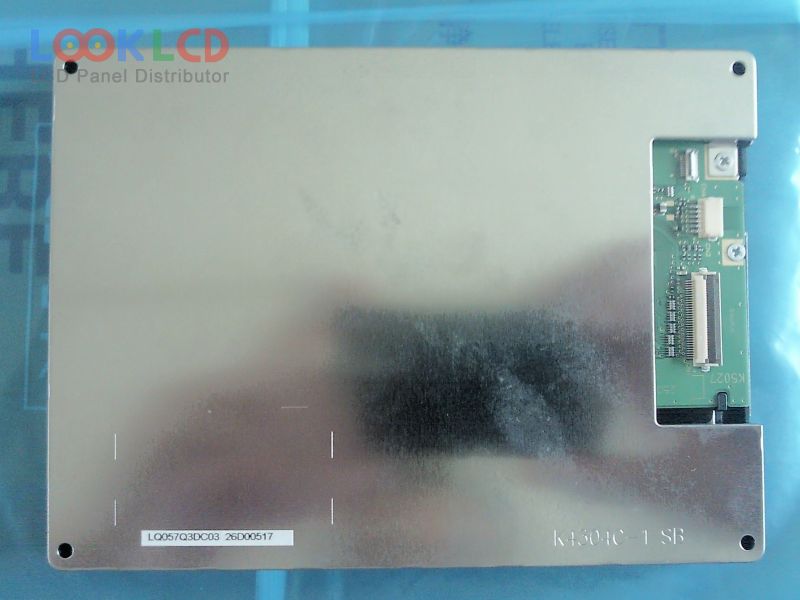

| Varenummer | LQ057Q3DC03 |
| Mærke | SHARP |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ057Q3DC03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320×240(RGB) , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.6×12.8 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
