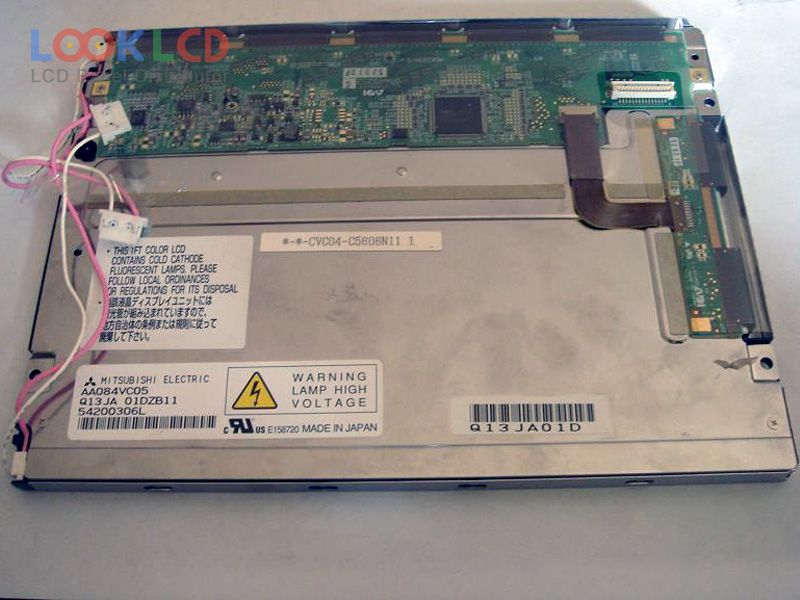

| Varenummer | AA084VC05 |
| Mærke | Mitsubishi |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 480 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Mitsubishi |
| panel model | AA084VC05 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.88×128.16 mm |
| omrids | 199.5×149×12 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 480 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 6/19 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AA084SA01 | Mitsubishi | 8.4 | 800×600 |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA084VB01 | Mitsubishi | 8.4 | 640×480 |
| AA084VC03 | Mitsubishi | 8.4 | 640×480 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AA084VD02 | Mitsubishi | 8.4 | 640×480 |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| AA084XE11 | Mitsubishi | 8.4 | 1024×768 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LM64183P | SHARP | 9.4 | 640×480 |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LTA084C270F | TOSHIBA | 8.4 | 800×600 |
| LTA121B860F | TOSHIBA | 12.1 | 800×600 |
| NL3224AC35-05 | NLT | 5.5 | 320×240 |
| NL6448BC33-21 | NLT | 10.4 | 640×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
