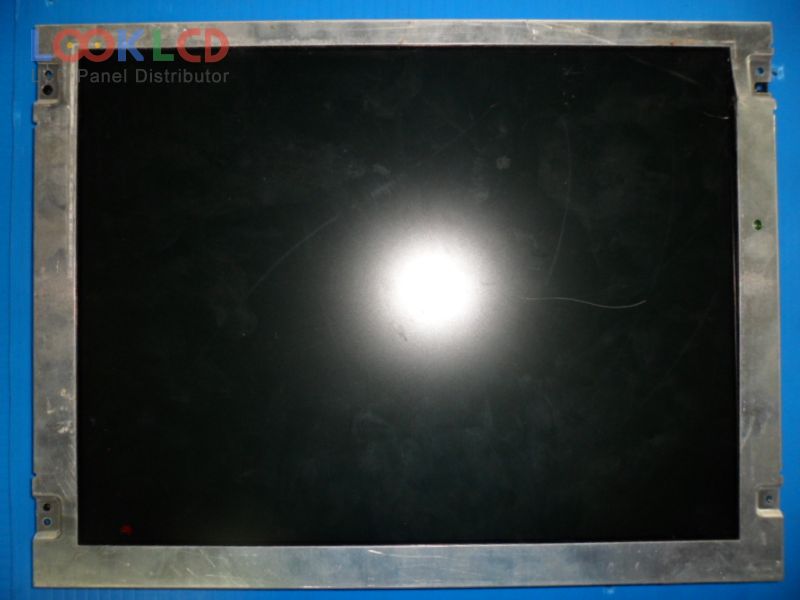

| Varenummer | NL10276AC30-04R |
| Mærke | NLT |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 200:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

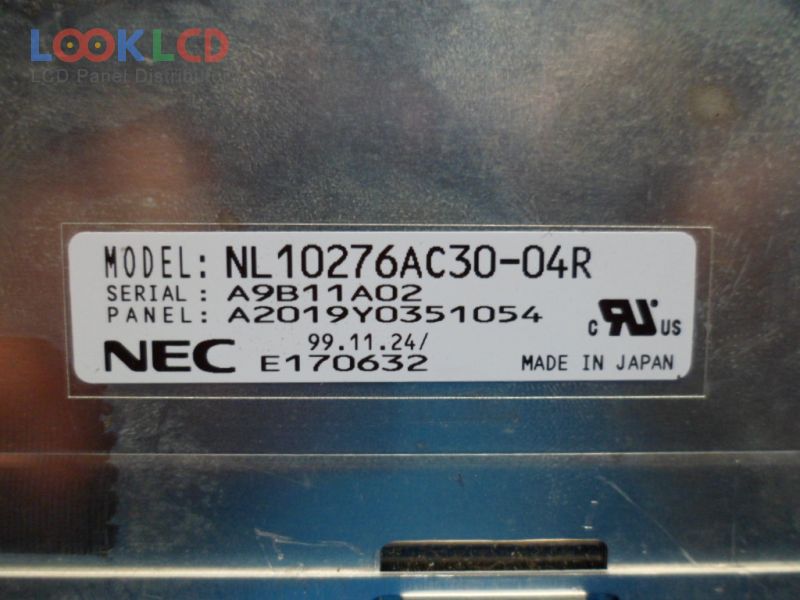

| panel mærke | NEC |
| panel model | NL10276AC30-04R |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 350×265×20.5 mm |
| overflade | Antireflection |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 200:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 15/40 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
