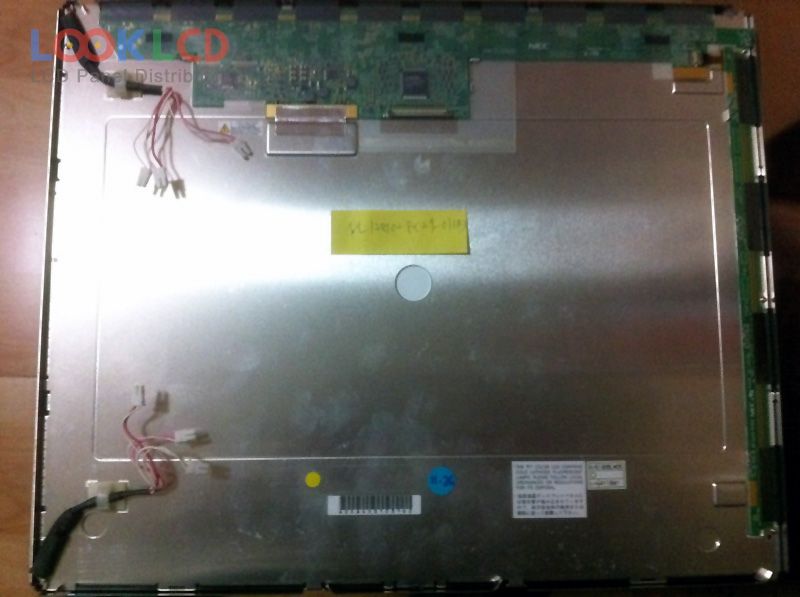

| Varenummer | NL128102BC29-01 |
| Mærke | NLT |
| Størrelse | 19.0 |
| Ansøgning | DMPC |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 450:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL128102BC29-01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | SA-SFT, Normally Black, Transmissive |
| aktivt område | 376.32×301.056 mm |
| omrids | 404.2×330×25.55 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 10/10 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| LQ190E1LW62 | SHARP | 19.0 | 1280×1024 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| NL128102AC28-07 | NLT | 18.1 | 1280×1024 |
| NL128102AC29-17 | NLT | 19.0 | 1280×1024 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| NL128102BC29-01 | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01C | NLT | 19.0 | 1280×1024 |
| NL128102BM29-05A | NLT | 19.0 | 1280×1024 |
| R190EFE-L51 | Innolux | 19.0 | 1280×1024 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| LM185TT1A | PANDA | 18.5 | 1366×768 |
| LM215WF2-SLC1 | LG Display | 21.5 | 1920×1080 |
| LM240WU4-SLA1 | LG Display | 24.0 | 1920×1200 |
| LTM200KT08-V | Samsung | 20.0 | 1600×900 |
| LTM230TT01 | Samsung | 23.0 | 2048×1152 |
| M170EP01 V0 | AUO | 17.0 | 1280×1024 |
| M215HW01 V7 | AUO | 21.5 | 1920×1080 |
| M240HTN01.1 | AUO | 24.0 | 1920×1080 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
