| Varenummer | NL128102AC28-07 |
| Mærke | NLT |
| Størrelse | 18.1 |
| Ansøgning | IA |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |

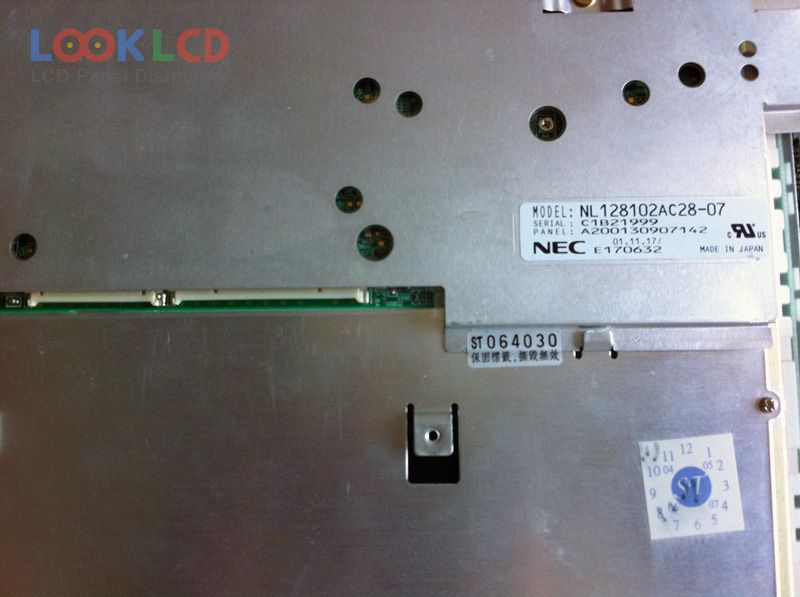

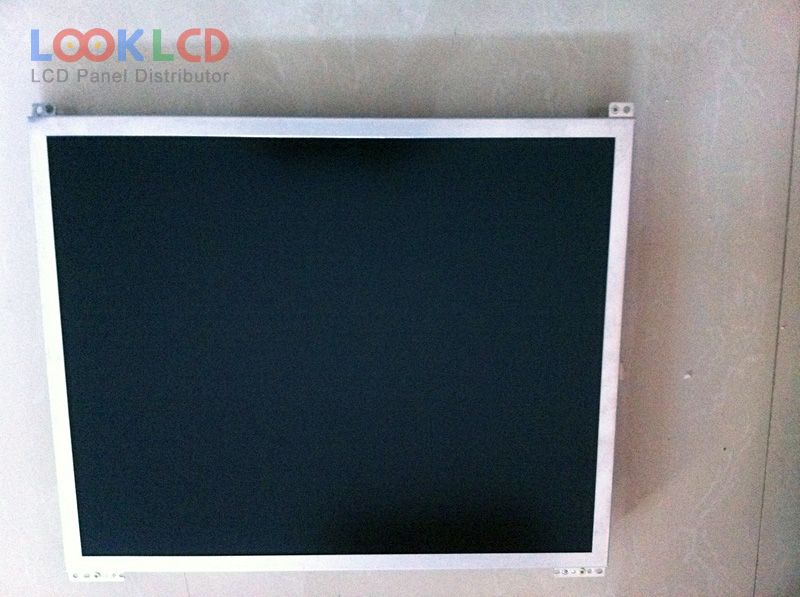

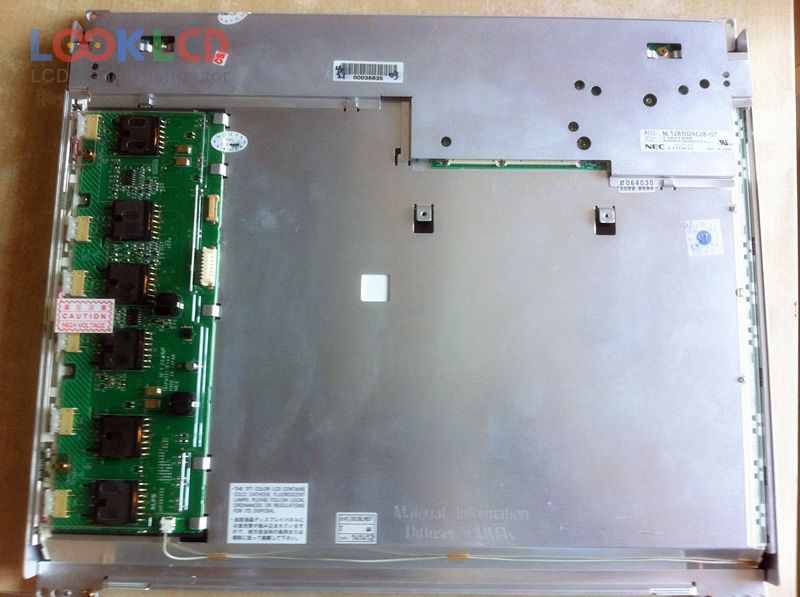

| panel model | NL128102AC28-07 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 18.1 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | A-SFT, Normally Black, Transmissive |
| aktivt område | 359.04×287.232 mm |
| omrids | 389×317.2×31.3 mm |
| overflade | Hard coating (2H), Antireflection |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 15/14 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 12 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 50 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | IA |
