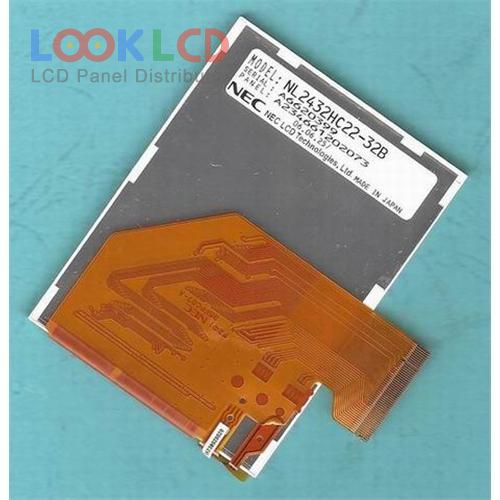

| Varenummer | NL2432HC22-32B |
| Mærke | NLT |
| Størrelse | 3.5 |
| Ansøgning | PDA |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 70:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL2432HC22-32B |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85 mm |
| overflade | Antiglare |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 70:1 (Typ.)(Transmissive) |
| vise farver | 262K (6-bit) |
| responstid | 39 (Typ.)(Tr+Td) |
| synsvinkel | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLED |
| signal interface | CMOS (1 ch, 6-bit) |
| indgangsspænding | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| Ansøgning | PDA |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
