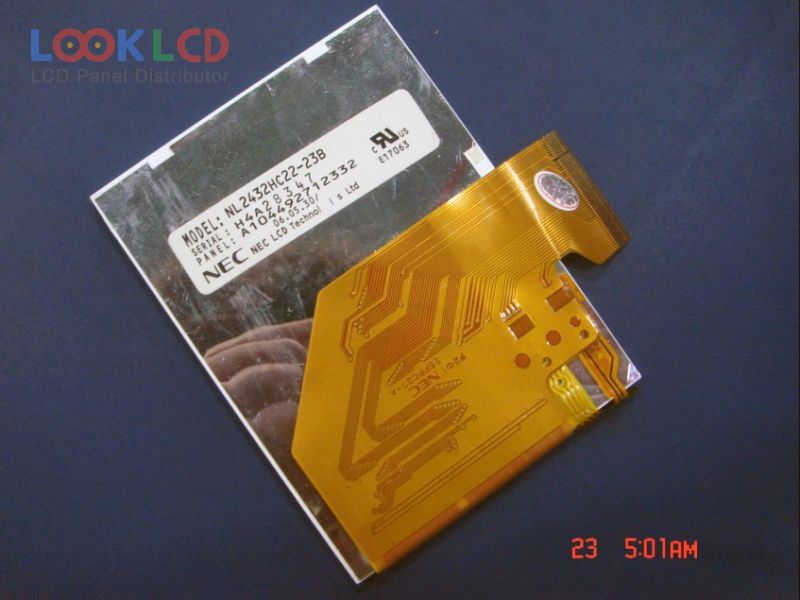

| Varenummer | NL2432HC22-23B |
| Mærke | NLT |
| Størrelse | 3.5 |
| Ansøgning | PDA |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 90 |
| CR | 80:1 |
| Farver | |
| Baggrundsbelysning | WLED |
| Interface | |
| panel mærke | NEC |
| panel model | NL2432HC22-23B |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85 mm |
| overflade | |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 80:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| vise farver | |
| responstid | |
| synsvinkel | |
| lampe type | WLED |
| rohs: | |
| Ansøgning | PDA |
| ELT160.80.50 | Lumineq | 3.5 | 160×80 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TD035STED4 | TPO | 3.5 | 240×320 |
