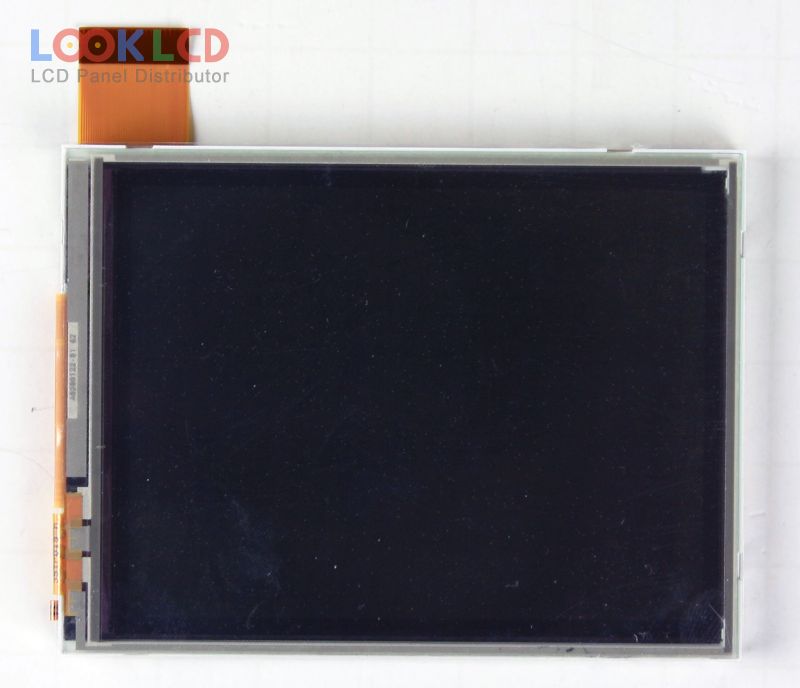

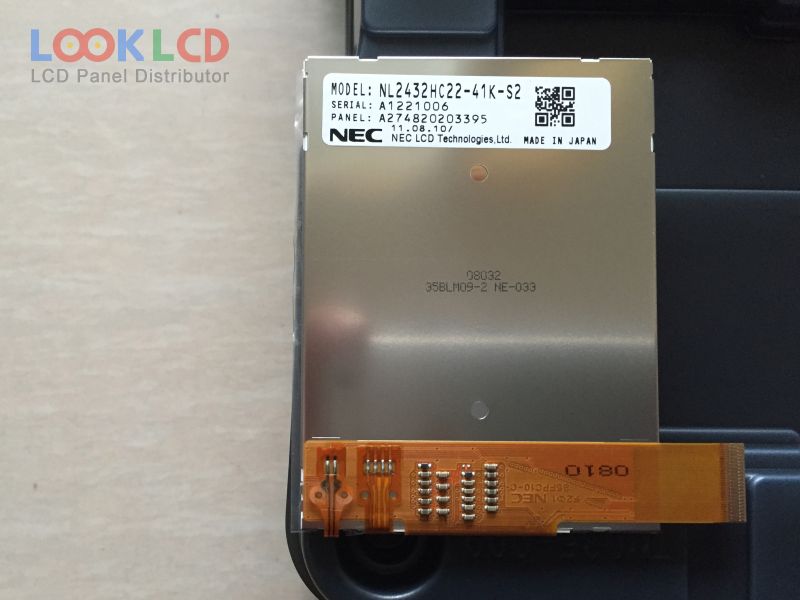

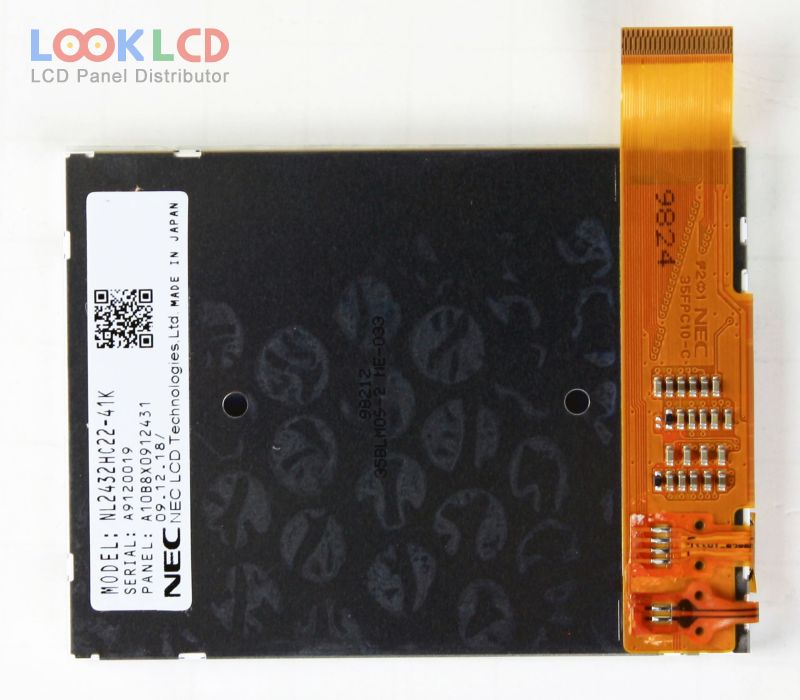

| Varenummer | NL2432HC22-41K |
| Mærke | NLT |
| Størrelse | 3.5 |
| Ansøgning | PDA |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL2432HC22-41K |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 63.5×85×7 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 7/23 (Typ.)(Tr/Td) |
| synsvinkel | 30/30/30/35 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit) + SPI, 45 pins |
| indgangsspænding | 3.0V (Typ.) |
| Ansøgning | PDA |
| ET035009DH6 | EDT | 3.5 | 320×240 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
