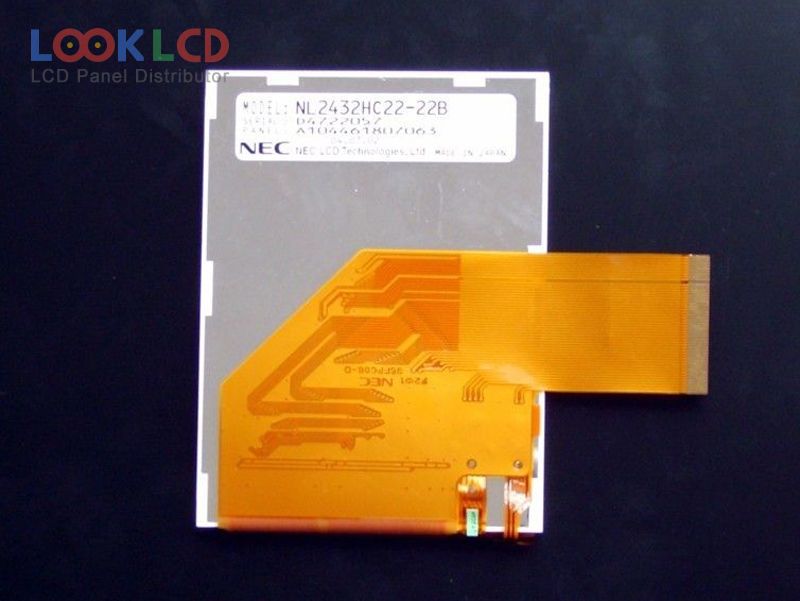

| Varenummer | NL2432HC22-22B |
| Mærke | NLT |
| Størrelse | 3.5 |
| Ansøgning | PDA |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 90 |
| CR | 90:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL2432HC22-22B |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85×4.85 mm |
| overflade | |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 14/25 (Typ.)(Tr/Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
