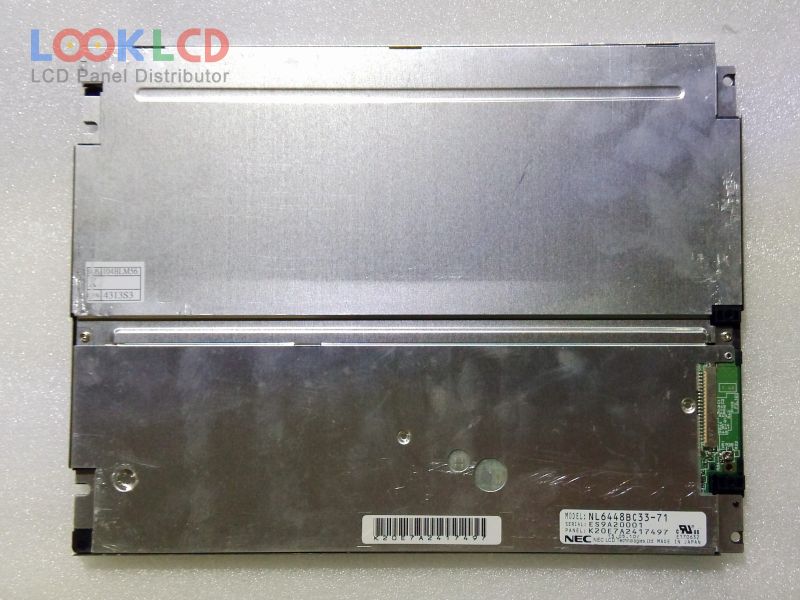

| Varenummer | NL6448BC33-71 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL6448BC33-71 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| responstid | 3/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| NL6448AC33-05 | NLT | 10.4 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC26-08D | NLT | 8.4 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| AA121TD01 | Mitsubishi | 12.1 | 1280×800 |
| EW50855BMW | EDT | 4.7 | 320×240 |
| G104SN02 V0 | AUO | 10.4 | 800×600 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
| RGS24128022YR000 | RiTdisplay | 2.4 | 128×22 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
