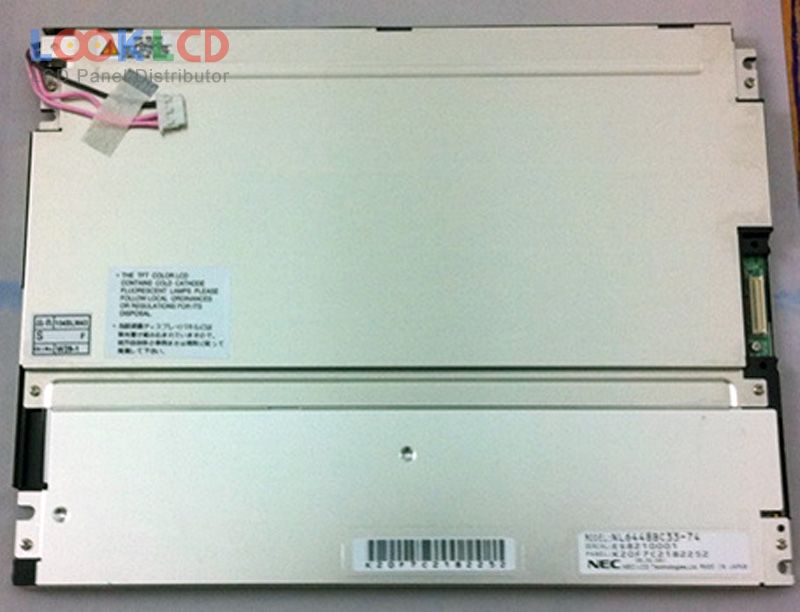

| Varenummer | NL6448BC33-74 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC33-74 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | SA-SFT, Normally Black, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 14/16 (Typ.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.) |
| Ansøgning | IA |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC20-08 | NLT | 6.5 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-09C | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| DMF50773NF-SLY | Kyocera | 5.4 | 240×128 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| LQ201U1LW32 | SHARP | 20.1 | 1600×1200 |
| MD480T640PG4 | Panasonic | 11.3 | 640×480 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| UG-9616TSWBG01 | WiseChip | 0.84 | 96×16 |
