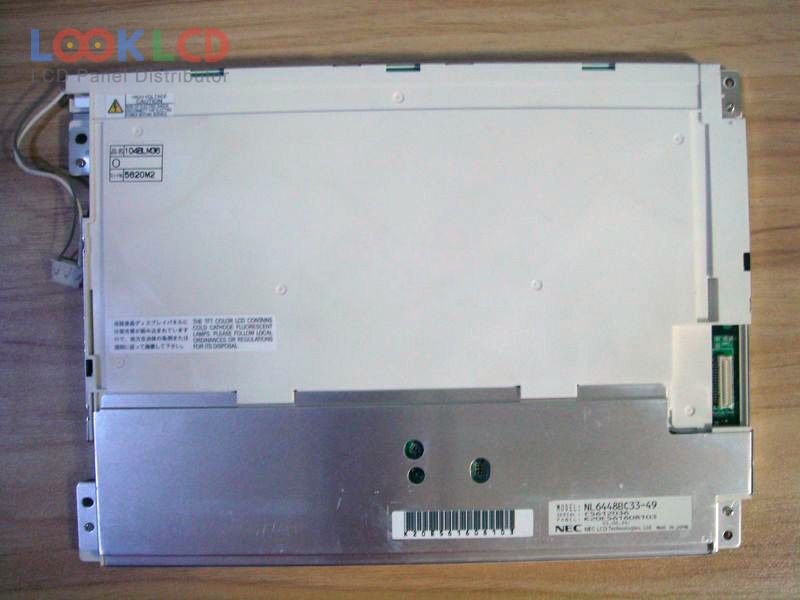

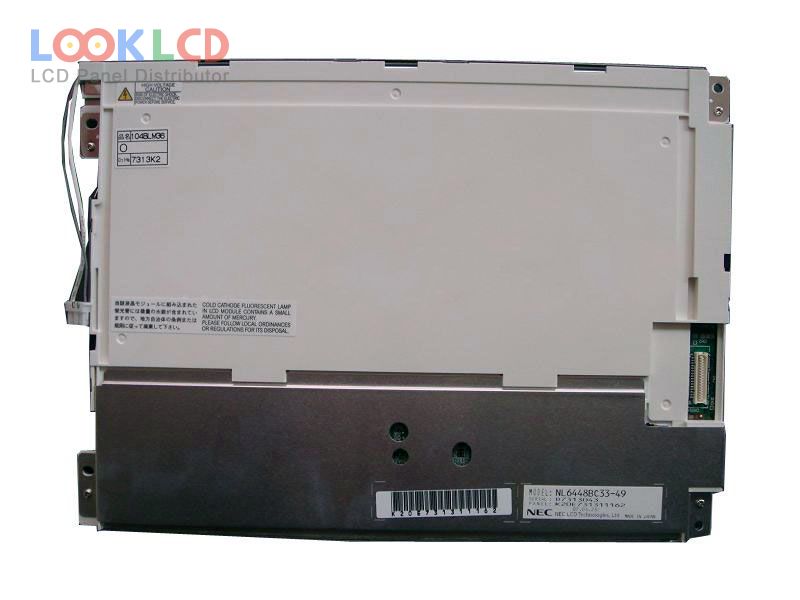

| Varenummer | NL6448BC33-49 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC33-49 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 10/40 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.) |
| Ansøgning | IA |
