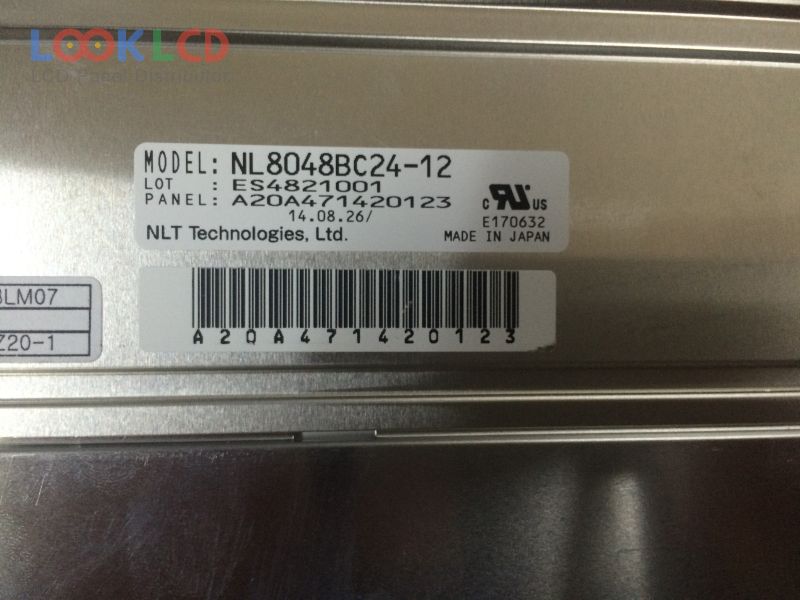

| Varenummer | NL8048BC24-12 |
| Mærke | NLT |
| Størrelse | 9.0 |
| Ansøgning | IA |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL8048BC24-12 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 196.8×118.08 mm |
| omrids | 220.5×136.5×8.7 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| responstid | 3/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
