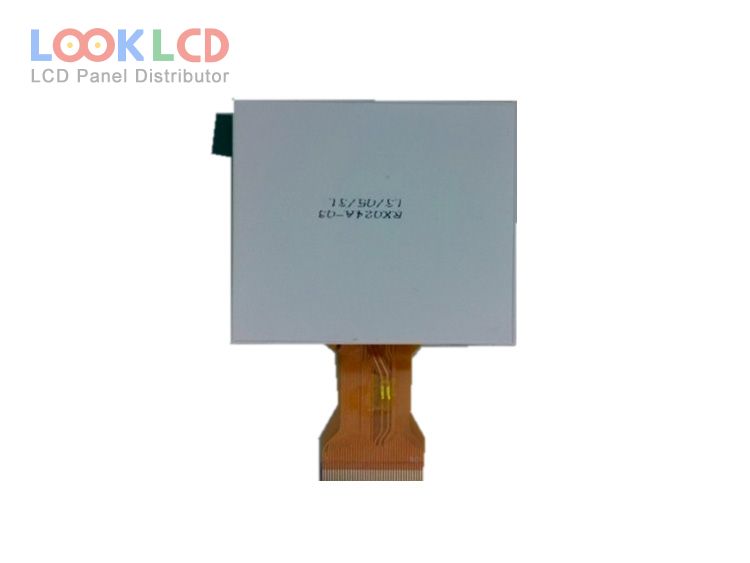

| Varenummer | RX024A-03 |
| Mærke | ROGIN |
| Størrelse | 2.4 |
| Ansøgning | IA |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | ROGIN |
| panel model | RX024A-03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.4 inch |
| løsning | 480×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 48×35.685 mm |
| omrids | 54.8×47.15×2.9 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | , CIE193145% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, 40 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| Ansøgning | IA |
